Description

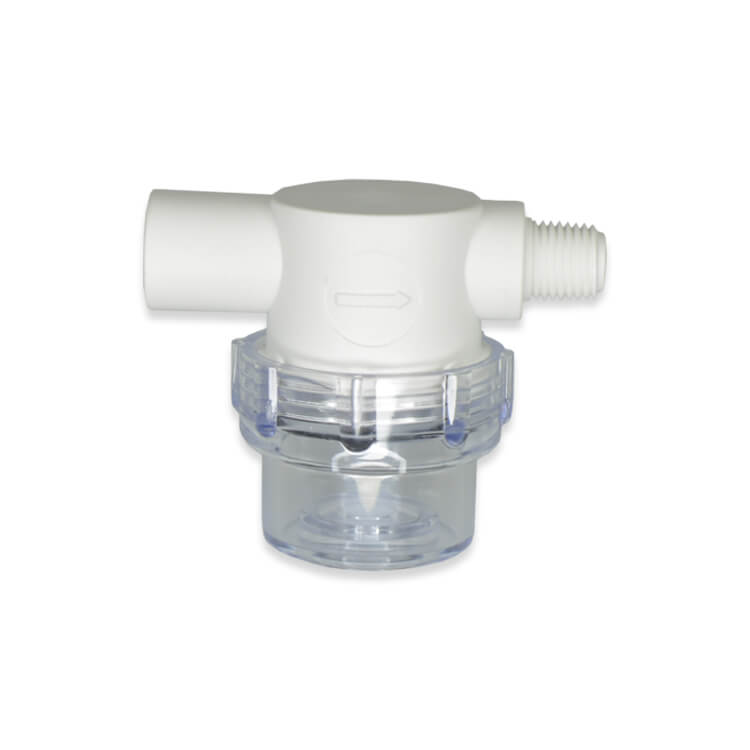

The PWF Series Plastic Bowl Filters have a Polypropylene or Nylon housing with a clear, profile 1-inch bowl filter. Available port sizes are 1/4 inch, 3/8 inch, and .170 inch barbs. Male and female NPT threads for these filters are 1/4 inch, 3/8 inch, and 1/2 inch. Available gaskets are EPDM, Viton®, and Buna-N. Filters: 20, 40, 80, 100, or 250 mesh 303 Stainless Steel; 5 and 70-micron Polyethylene screen; 10 Micron paper pleated screen.
| SKU | Description |
|---|---|
| PWF-170-100MH | .170 Barb by.170 Barb 100 Mesh |
| PWF-14M170-20MH | 1/4 MNPT by .170 Barb 20 Mesh |
| PWF-14F14M-100MC | 1/4 FNPT by 1/4 FNPT 100 Micron |
| PWF-14M14M-30MC | 1/4 MNPT by 1/4 MNPT 30 Micron |
| PWF-14F14M-60MC | 1/4 FNPT by 1/4 MNPT 60 Micron |
| PWF-14M4P-40MH | 1/4 MNPT by 1/4 OD 40 Mesh |
| PWF-4P4P-80MH | 1/4 OD by 1/4 OD 80 Mesh |
| PWF-6P6P-250MC | 3/8 OD by 3/8 OD 250 Micron |
| PWF-6P4M-10PAPER | 3/8 OD by 1/4 MNPT 10 Micron Paper |
| PWF-4P4S-100MH | 1/4 OD by 1/4 Stem 100 Mesh |
