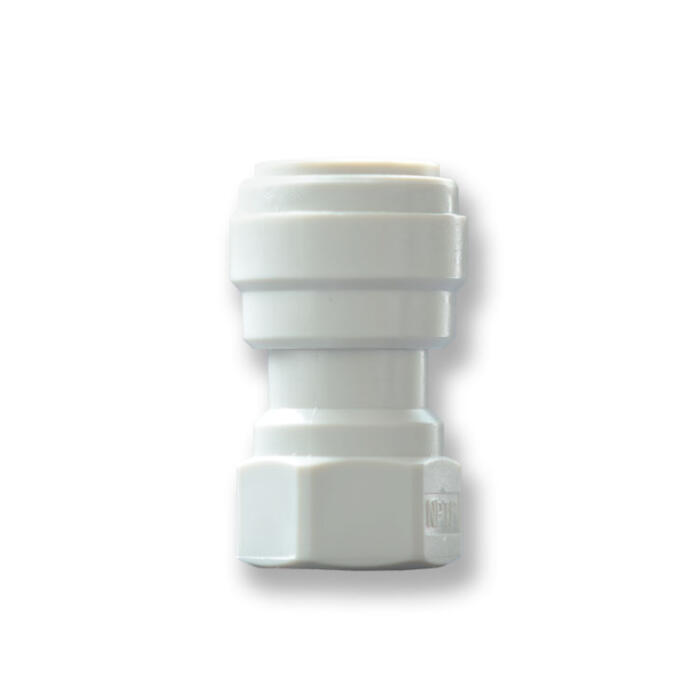

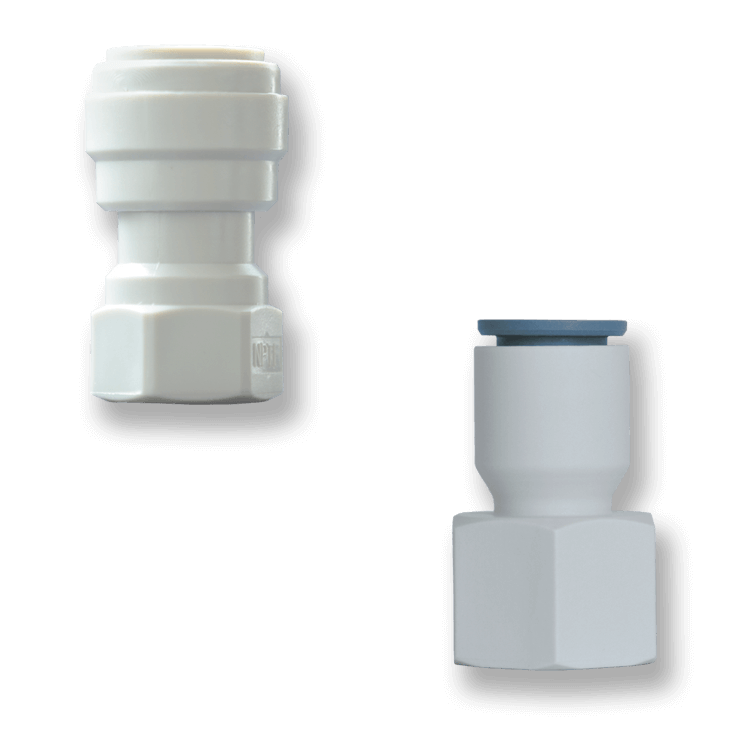

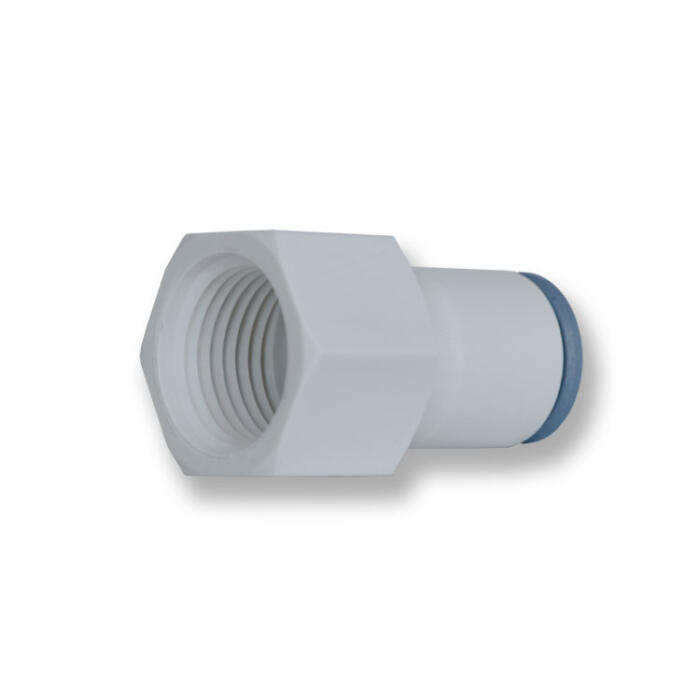

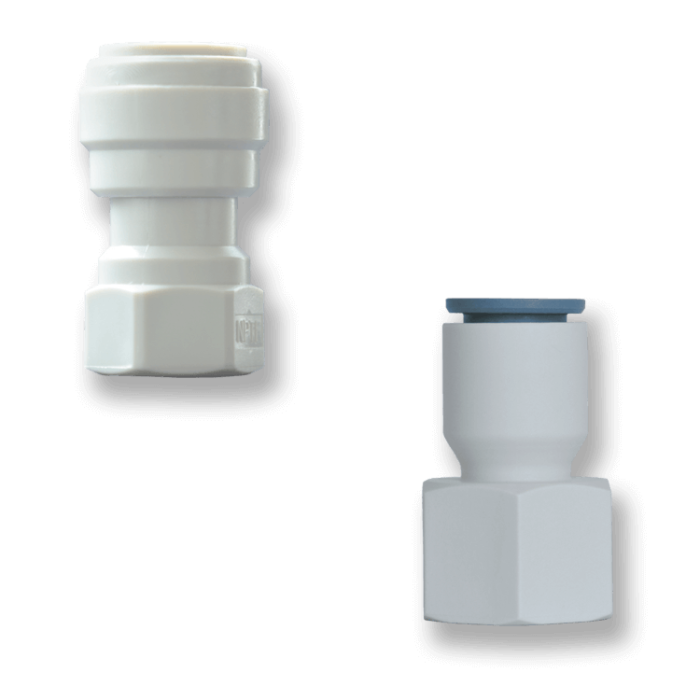

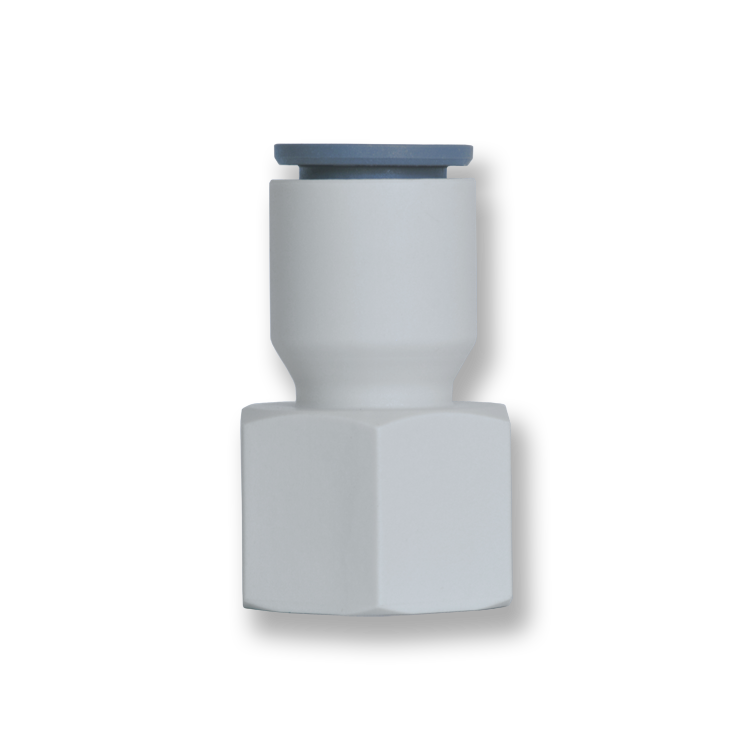

PF Series

Push-to-Connect to Female NPT Straight connectors available in Acetal, Polypropylene, and Kynar® used to join tubing of Polyethylene, Brass, or Copper. Push-to-Connect sizes range from 1/2 inch to 1/4 inch and Thread sizes ranging from 1/2 FNPT to 1/8 inch FNPT. Gray or White Acetal are NSF and FDA approved and have Buna seals for use in air, gases, and potable water applications. White Polypropylene with EPDM seals or PVDF with FKM seals. Maximum temperature 140°F at 60 psi for Polypropylene.

Description

SKUDescription
PF-2F41/8 FNPT by 1/4 OD Straight Push-to-Connect
PF-4F41/4 FNPT by 1/4 OD Straight Push-to-Connect
PF-4F51/4 FNPT by 5/16 OD Straight Push-to-Connect
PF-4F61/4 FNPT by 3/8 OD Straight Push-to-Connect
PF-6F53/8 FNPT by 5/16 OD Straight Push-to-Connect
PF-6F63/8 FNPT by 3/8 OD Straight Push-to-Connect
PF-6F83/8 FNPT by 1/2 OD Straight Push-to-Connect
