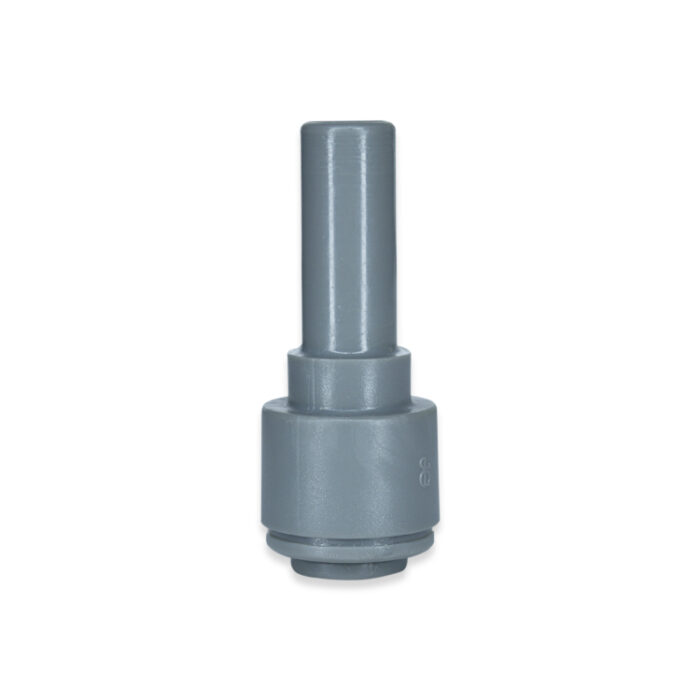

Push-to-Connect to Stem available in Acetal, Polypropylene (select sizes only), and Kynar® can be added to a push-in connector to reduce the tubing size of Polyethylene, Brass, or Copper tubing. Stem sizes range from 1/2 inch to 3/16 inch reducing to as small as 5/32 inch OD. Gray or White Acetal are NSF and FDA approved and have Buna seals for use in air, gases, and potable water applications. White Polypropylene with EPDM seals or PVDF with FKM seals. Maximum temperature 140°F at 60 psi for Polypropylene.
PSP Series
Description
SKU | Description |
---|---|
PSP-3-532 | 3/16 Stem by 5/32 OD Push-to-Connect Reducer |
PSP-5-3 | 5/16 Stem to 3/16 OD Push-to-Connect Reducer |
PSP-5-4 | 5/16 Stem to 1/4 OD Push-to-Connect Reducer |
PSP-6-3 | 3/8 Stem to 3/16 OD Push-to-Connect Reducer |
PSP-6-4 | 3/8 Stem to 1/4 OD Push-to-Connect Reducer |
PSP-6-5 | 3/8 Stem to 5/16 OD Push-to-Connect Reducer |
PSP-8-4 | 1/2 Stem to 1/4 OD Push-to-Connect Reducer |
PSP-8-5 | 1/2 Stem to 5/16 OD Push-to-Connect Reducer |
PSP-8-6 | 1/2 Stem to 3/8 OD Push-to-Connect Reducer |
