Description

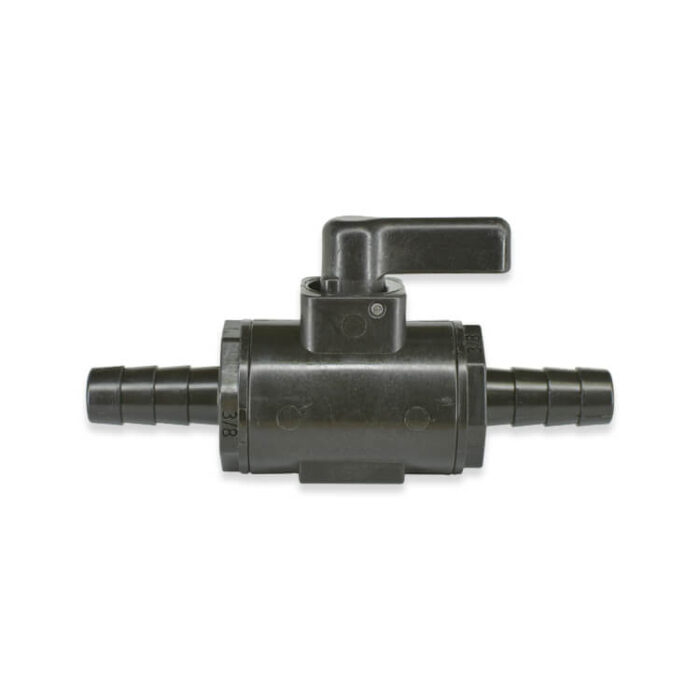

The PJV Series Micro Ball Valves are of Polypropylene and reinforced fiberglass with a 90-degree rotating handle and FKM O-rings. The standard pressure is 150 psi with a maximum temperature of 150° with a maximum pressure of 300 psi at 70° F.
| SKU | Description |
|---|---|
| PJV-38B | 3/8 inch Barbed Glass-Filled Polypropylene Micro Ball Valve with FKM Seals |
| PJV-38F | 3/8 inch Female Glass-Filled Polypropylene Micro Ball Valve with FKM Seals |
| PJV-4F4M | 1/4 inch Female by 1/4 inch Male |
| PJV-4B | 1/4 inch Barbed Polypropylene Micro Ball Valve |
| PJV-6F6M | 3/8 inch Female by 3/8 inch Male Polypropylene Micro Ball Valve |
| PJV-6B | 3/8 inch Barbed Polypropylene Micro Ball Valve |
| PJV-8F8M | 1/2 inch Female by 1/2 inch Male Polypropylene Micro Ball Valve |
| PJV-8B | 1/2 inch Barbed Polypropylene Micro Ball Valve |
| PJV-12B | 1/2 inch Barbed Polypropylene Micro Ball Valve |
