Stem connector to Male Pipe Thread Fittings can be added to a Female Pipe Thread port. The stem allows for adding a Push-to-Connect connector to create Tees, Elbows, Wyes, and Crosses. Can also be used to create Male to Male Pipe or Male to Female Pipe connections. These units allow the connection to Swivel. Acetal, Polypropylene, and Kynar® can be added to a Push-to-Connect connector to terminate in a barbed connection for use with Polyethylene, Vinyl, or braided Vinyl tubing. Stem sizes range from 1/2 inch to 5/32 inch with Pipe Threads ranging from 1/2 inch NPT to 1/8 inch NPT ( See PMES, PMT and PMR Series for examples.). Gray or White Acetal are NSF and FDA approved and have Buna seals for use in air, gases, and potable water applications. White Polypropylene with EPDM seals or PVDF with FKM seals. Maximum temperature 140°F at 60 psi for Polypropylene.

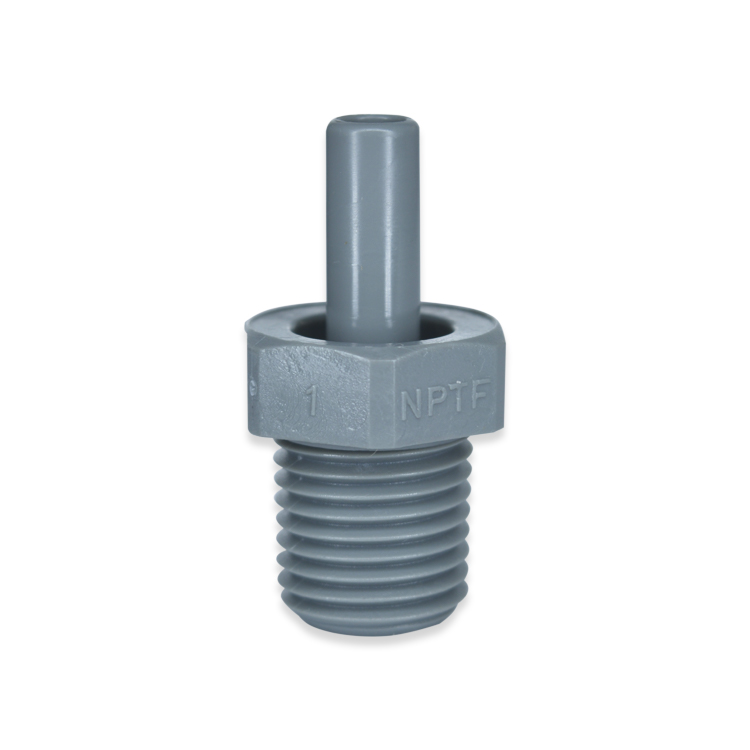

PSM THREAD TO MALE PIPE CONNECTOR Push to Connect
Description
SKU | Description |
---|---|
PSM-2M3-GA | 1/8 MNPT by 3/16 OD Push-to-Connect Stem |
PSM-2M4-GA | 1/8 MNPT by 1/4 OD Push-to-Connect Stem |
PSM-2M532-GA | 1/8 MNPT by 5/32 OD Push-to-Connect Stem |
PSM-2M5-GA | 1/8 MNPT by 5/16 OD Push-to-Connect Stem |
PSM-4M4-GA | 1/4 MNPT by 1/4 OD Push-to-Connect Stem |
PSM-4M532-GA | 1/4 MNPT by 5/32 OD Push-to-Connect Stem |
PSM-4M5-GA | 1/4 MNPT by 5/16 OD Push-to-Connect Stem |
PSM-4M6-GA | 1/4 MNPT by 3/8 OD Push-to-Connect Stem |
PSM-4M8-GA | 1/4 MNPT by 1/2 OD Push-to-Connect Stem |
PSM-6M4-GA | 3/8 MNPT by 1/4 OD Push-to-Connect Stem |
PSM-6M5-GA | 3/8 MNPT by 5/16 OD Push-to-Connect Stem |
PSM-6M6-GA | 3/8 MNPT by 3/8 OD Push-to-Connect Stem |
