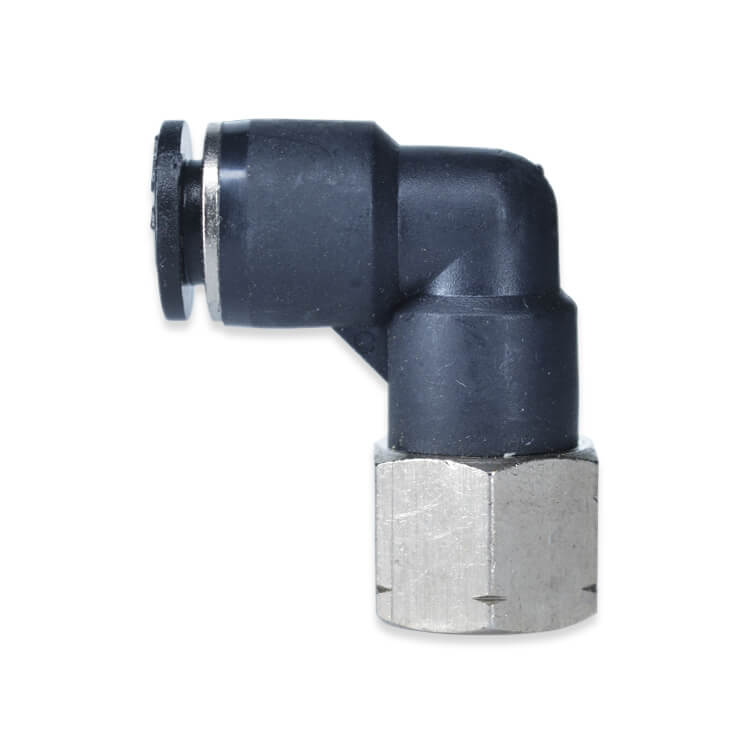

Push-to-connect Swivel Female Elbow is configured with a 90˚ body with an external hex for tightening. The working pressure is 150 psi and the temperature range is 32˚ F to 140˚ F. Metal body material is Nickel-Plated Brass and the resin is PBT. For use with compressed air and inert gases.
PEFC FEMALE PUSH-TO-CONNECT ELBOW WITH EXTERNAL HEX
Description
| SKU | DESCRIPTION |
|---|---|
| PEFC-10U14P | 10-32 Female UNF by 1/4 OD Push-to-Connect Elbow |
| PEFC-10U18P | 10-32 Female UNF by 1/8 OD Push-to-Connect Elbow |
| PEFC-10U316P | 10-32 Female UNF by 3/16 OD Push-to-Connect Elbow |
| PEFC-10U532P | 10-32 Female UNF by 5/32 OD Push-to-Connect Elbow |
| PEFC-2F18P | 1/8 FNPT by 1/8 OD Push-to-Connect Elbow |
| PEFC-2F316P | 1/8 FNPT by 3/16 OD Push-to-Connect Elbow |
| PEFC-2F14P | 1/8 FNPT by 1/4 OD Push-to-Connect Elbow |
| PEFC-2F38P | 1/8 FNPT by 3/8 OD Push-to-Connect Elbow |
| PEFC-2F4P | 1/8 FNPT by 1/4 OD Push-to-Connect Elbow |
| PEFC-2F516P | 1/8 FNPT by 5/16 OD Push-to-Connect Elbow |
| PEFC-2F532P | 1/8 FNPT by 5/32 OD Push-to-Connect Elbow |
| PEFC-4F18P | 1/4 FNPT by 1/8 OD Push-to-Connect Elbow |
| PEFC-4F316P | 1/4 FNPT by 3/16 OD Push-to-Connect Elbow |
| PEFC-4F14P | 1/4 FNPT by 1/4 OD Push-to-Connect Elbow |
| PEFC-4F516P | 1/4 FNPT by 5/16 OD Push-to-Connect Elbow |
| PEFC-4F532P | 1/4 FNPT by 5/32 OD Push-to-Connect Elbow |
| PEFC-4F6P | 1/4 FNPT by 3/8 OD Push-to-Connect Elbow |
| PEFC-4F8P | 1/4 FNPT by 1/2 OD Push-to-Connect Elbow |
| PEFC-6F316P | 3/8 FNPT by 3/16 OD Push-to-Connect Elbow |
| PEFC-6F14P | 3/8 FNPT by 1/4 OD Push-to-Connect Elbow |
| PEFC-6F516P | 3/8 FNPT by 5/16 OD Push-to-Connect Elbow |
| PEFC-6F38P | 3/8 FNPT by 3/8 OD Push-to-Connect Elbow |
| PEFC-6F12P | 3/8 FNPT by 1/2 OD Push-to-Connect Elbow |
| PEFC-8F38P | 1/2 FNPT by 3/8 OD Push-to-Connect Elbow |
| PEFC-8F12P | 1/2 FNPT by 1/2 OD Push-to-Connect Elbow |
