The CFE Series Compression to Female Pipe Thread Fittings are to Valves or Plastic Pipe Fittings for tube connection without kinking attached tubing. Available in NSF approved Glass-Filled White Polypropylene, FDA and NSF approved Acetal (POM) for use with hot water applications, FDA and NSF approved Nylon, and UV resistant FDA and NSF rated PVDF. Provided with Poly gripper (except for 1/8 inch units) for us up to 220 psi.

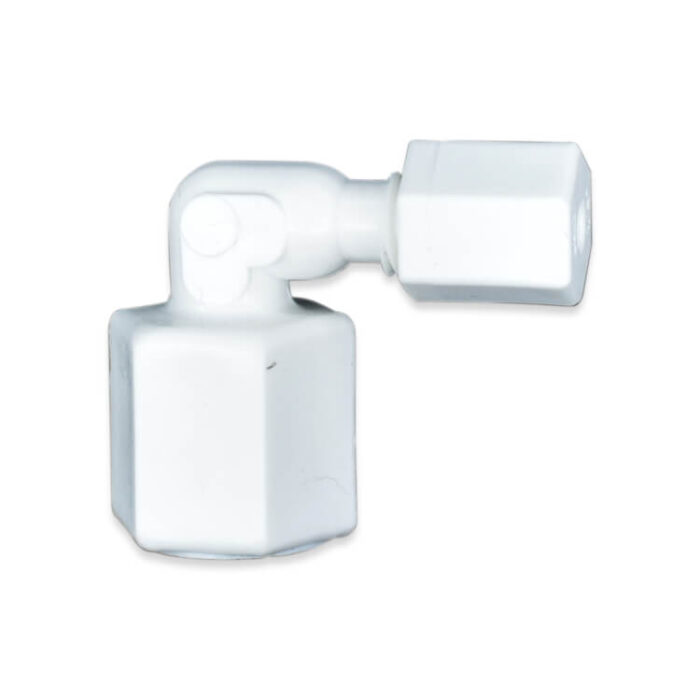

CFE 90° ELBOW COMPRESSION FITTING
Description
| SKU | Description |
|---|---|
| CFE-1814 | 1/8 FNPT by 1/4 OD Compression Elbow |
| CFE-1418 | 1/4 FNPT by 1/8 OD Compression Elbow |
| CFE-1414 | 1/4 FNPT by 1/4 OD Compression Elbow |
| CFE-14516 | 1/4 FNPT by 5/16 OD Compression Elbow |
| CFE-1438 | 1/4 FNPT by 3/8 OD Compression Elbow |
| CFE-3838 | 3/8 FNPT by 3/8 OD Compression Elbow |
| CFE-3812 | 3/8 FNPT by 1/2 OD Compression Elbow |
| CFE-1212 | 1/2 FNPT by 1/2 OD Compression Elbow |
| CFE-1258 | 1/2 FNPT by 5/8 OD Compression Elbow |
