Description

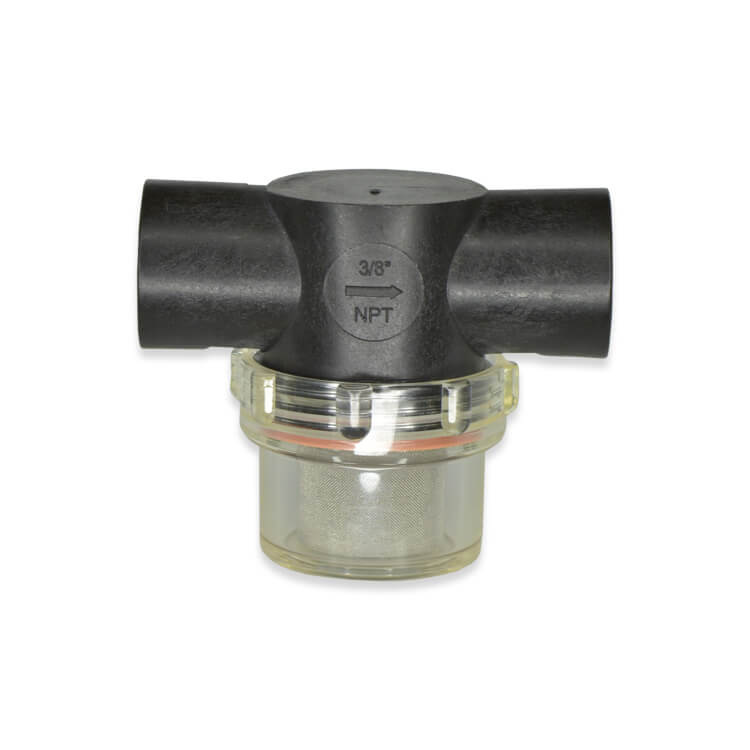

The LP Series are low-profile Bowl Filters that stand just 2.5 inches tall. The standard configuration is a Nylon top with a clear Nylon bowl. Black Polypropylene is optional. The available gaskets are Buna, EPDM, or FKM. Filters are 20, 40, 80, 100, or 250 mesh 303 Stainless Steel; 90-micron Polyethylene filter. Male and Female NPT thread sizes are 1/8 inch, 1/4 inch, 3/8 inch, and 1/2 inch. Barb sizes are 1/4 inch, 3/8 inch, and 1/2 inch. Used in agriculture, dental and semi-conductor, and vacuum applications for water and chemicals. Not for use with potable water.
| SKU | Description |
|---|---|
| LP-20 | Low Profile 20 Mesh Stainless Steel |
| LP-40 | Low Profile 40 Mesh Stainless Steel |
| LP-B | Low profile Buna Gasket |
| LP-E | Low profile EPDM Gasket |
| LP-NB | Low profile White Nylon Bowl |
| LP-NCB | Low profile Nylon Clear Bowl |
| LP-PB | Low Profile Polypropylene Bowl |
| LP-V | Low profile FKM Gasket |
| LP-90PE | Low Profile 90 Micron Polyethylene Filter |
| LP-80 | Low Profile 80 Mesh Stainless Steel |
| LP-2F-PT | 1/8 FNPT Polypropylene Top Low Profile Filter |
| LP-4F-PT | 1/4 FNPT Polypropylene Top Low Profile Filter |
| LP-6F-NT | 3/8 FNPT Nylon Top Low Profile |
| LP-6F-PT | 3/8 FNPT Polypropylene Top Low Profile |
| LP-2M-PT | 1/8 MNPT Polypropylene Top Low Profile |
| LP-4M-NT | 1/4 MNPT Nylon Top Low Profile |
| LP-4M-PT | 1/4 MNPT Polypropylene Top Low Profile |
| LP-4B-NT | 1/4 Barb Nylon Top Low Profile |
| LP-4B-PT | 1/4 Barb Polypropylene Top Low Profile |
| LP-6M-PT | 3/8 MNPT Polypropylene Top Low Profile |
| LP-6B-NT | 3/8 Barb Nylon Top Low Profile |
| LP-6B-PT | 3/8 Barb Polypropylene Top Low Profile |
| LP-2M-NNC-E-40 | 1/8 MNPT Nylon Clear Bowl EPDM-40 |
| LP-4M-N-E-20 | 1/4 MNPT Nylon BOWL EPDM-20 Mesh |
| LP-4M-NNC-E-20 | 1/4 MNPT Nylon Clear Bowl E 20 Mesh Filter |
| LP-4M-NNC-E-40 | 1/4 MNPT Nylon Clear Bowl EPDM-40 |
| LP-4M-PP-E-40 | 1/4 MNPT Polypropylene Top and Bowl E 40 Mesh |
| LP-6M-PP-E-40 | Low Profile 3/8 MNPT Polypropylene E 40 |
| LP-2F-NNC-V-40 | 1/8 FNPT Nylon Clear Bowl FKM-40 |
| LP-2F-PNC-E-40 | Low Profile 1/8 FNPT Polypropylene Clearbowl E 40 |
| LP-2F-PP-E-40 | Low Profile 1/8 FNPT Polypropylene E 40 |
| LP-2F-PNC-V-40 | Low Profile 1/8 FNPT Polypropylene with Clearbowl FKM 40 |
| LP-4F-PNC-E-40 | Low Profile 1/4 FNPT Polypropylene Clearbowl E 40 |
| LP-4F-NNC-V-40 | 1/4 FNPT Nylon Clear Bowl FKM-40 |
| LP-6F-NNC-V-40 | 3/8 FNPT Nylon Clear Bowl FKM-40 |
| LP-6F-PNC-E-100 | 3/8 FNPT Nylon Clear Bowl EPDM 100 Mic |
| LP-6F-PNC-V-80 | 3/8 FNPT Nylon Clear Bowl FKM-80 Mesh Filter |
| LP-8F-NNC-V-40 | 1/2 FNPT Nylon Clear Bowl FKM-40 |
| LP-8F-PNC-B-20 | 1/2 FNPT Nylon Clear Bowl Buna 20 |
| LP-8F-PNC-V-20 | 1/2 FNPT Nylon Clear Bowl FKM 20 |
| LP-6M-NNC-E-40 | 3/8 MNPT Nylon Clear Bowl EPDM-40 |
| LP-6B-NNC-V-80 | 3/8 Barb Nylon with Clear Bowl FKM-80 |
| LP-4B-NNC-V-80 | 1/4 Barb Nylon with Clear Bowl FKM-80 |
| LP-4B-PNC-V-80 | 1/4 Barb Polypropylene Clear Bowl FKM-80 |
| LP-6B-PNC-E-80 | 3/8 Barb Polypropylene Top Clear Bowl EPDM-80 |
| LP-6B-PNC-V-80 | 3/8 Barb Polypropylene Clear Bowl FKM-80 mesh |
| LP-8B-PNC-V-80 | 1/2 Barb Polypropylene Clear Bowl FKM-80 |
