Description

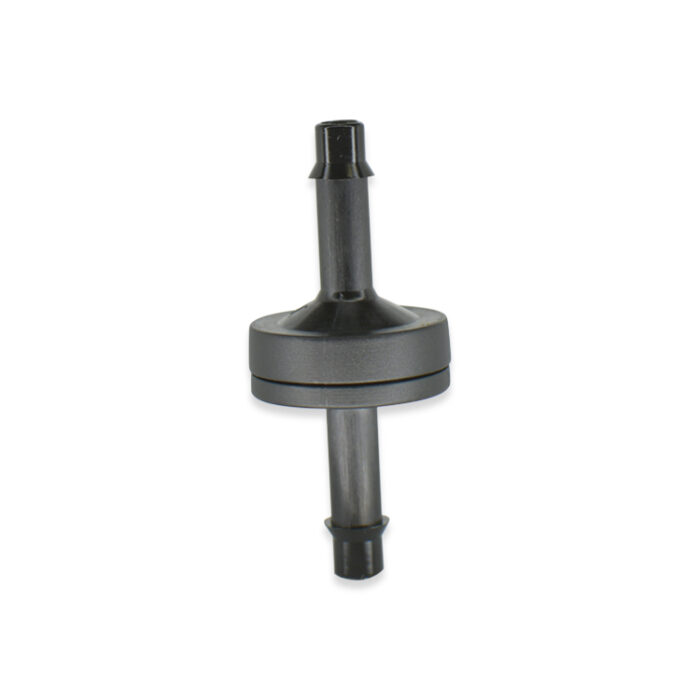

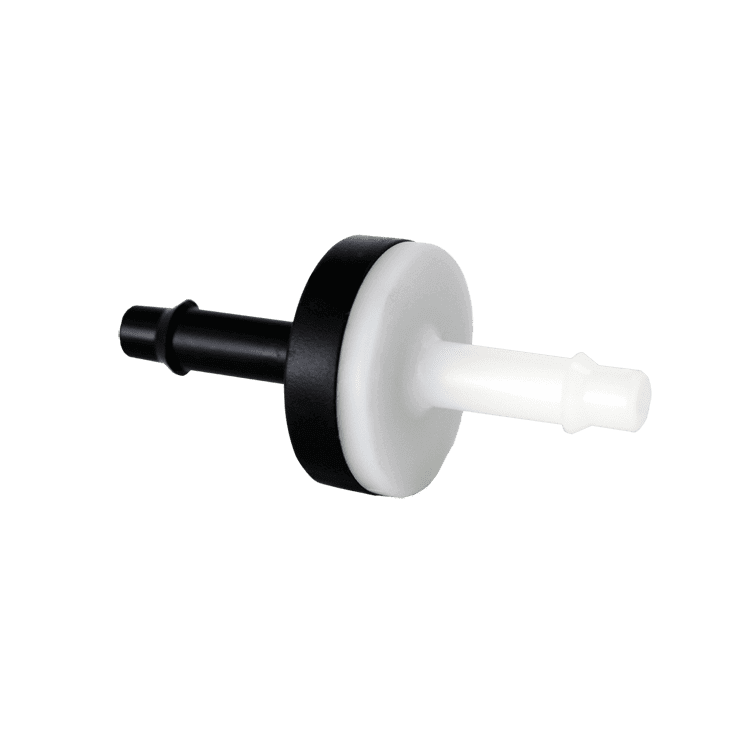

WPF Series Filters are manufactured by Pneuline Supply to custom specifications per customer requirements. Barbed connectors are available in various combinations such as…
– 1/8, 3/16, 1/4, 5/16, and 3/8 barbs. Male and Female Luers are available and can be mixed and matched with Barb connectors or opposing luer connectors. Our luer connections are ISO.594 compatible. Filters can be used for lab applications, medical applications, and industrial products.
Filter Housings can be made from various materials such as:- Polypropylene, Polycarbonate, Nylon, Acetal, and PVDF
The operating pressure is 50 PSI This series has a flat filter welded into the housing which is available in 10 different polyester filter media 4-5 stainless steel options..
-Fabric
– Available in Polyester or Polypropylene fabric (PTFE or PVDF optional)
– Sizes include: 5, 10, 20, 44, 64, 75, 105, 150, 177, 200, and 250 microns
-Porous high-density Polyethylene
– Hydrophobic in nature, therefore blocking most fluids
– Sizes include: 15-45, 45-90, and 90-160 microns
-Stainless steel
– Two grades available: 304 and 316L
– 304 is available in 61 micron(app 250 mesh), 74 micron(app 200 mesh), 103 micron(150 mesh), and 149 micron(100 mesh)
– 316SS available in 44 microns
| SKU | Description |
|---|---|
| WPF-2B-BKAC-45 HDPE | 1/8 inch Barbed BK Acetal 45 HDPE In-Line Filter |
| WPF-2B-BKAC-80SS | 1/8 inch Barbed BK Acetal 80 Mesh 304 In-Line Filter |
| WPF-2B-N | 1/8 inch Barbed Nylon In-Line Filter |
| WPF-2B-N-10 | 1/8 inch Barbed 10 Micron Nylon Filter |
| WPF-2B-P-105 | 1/8 inch Barbed 105 Micron Polypropylene Filter |
| WPF-2B-PC-45PE | 1/8 inch Barbed Polycarbonate with 45 micron Polyester filter |
| WPF-2B-PC-5PE | 1/8 inch Barbed Polycarbonate with 5 Micron Polyester filter |
| WPF-2B-PC-20N | 1/8 inch Barbed Polycarbonate with 20 Micron Nylon In-Line Filter |
| WPF-2B-PC-30N | 1/8 inch Barbed Polycarbonate with 30 Micron Nylon In-Line Filter |
| WPF-2B-NK-45 PE Medifab | 1/8 inch Barbed PVDF 45 micron Medifab Filter |
| WPF-3B-N-30 | 3/16 inch Barbed 30 Micron Nylon Filter |
| WPF-3B-P | 3/16 inch Barbed Polypropylene Filter |
| WPF-3B-P-130 | 3/16 inch Barbed 130 Micron Polypropylene Filter |
| WPF-3B-PC-200PE | 3/16 inch Barbed with 200 Micron Polycarbonate Filter |
| WPF-3B-PVDF-250 | 3/16 inch Barbed 250 Micron PVDF Filter |
| WPF-4BHF-N-75N | 1/4 inch High Flow Barbed Nylon with 75 Micron Filter |
| WPF-4BHF-PC-200PE | 1/4 inch High Flow Barbed Polycarbonate with 200 Filter |
| WPF-4B-K-200SS | 1/4 inch Barbed PVDF with 200 Micron Stainless Steel Filter |
| WPF-4B-K-250SS | 1/4 inch Barbed PVDF with 250 Micron Stainless Steel Filter |
| WPF-4B-N-48 | 1/4 inch Barbed 48 Micron Nylon Filter |
| WPF-4B-P-149 | 1/4 inch Barbed 149 Micron Polypropylene Filter |
| WPF-4B-PVDF-250 | 1/4 inch Barbed 250 Micron PVDF Filter |
| WPF-FLLMLLR-PC-200PE | Female to Male Luer, Polycarbonate, 200 Micron Polyester |
