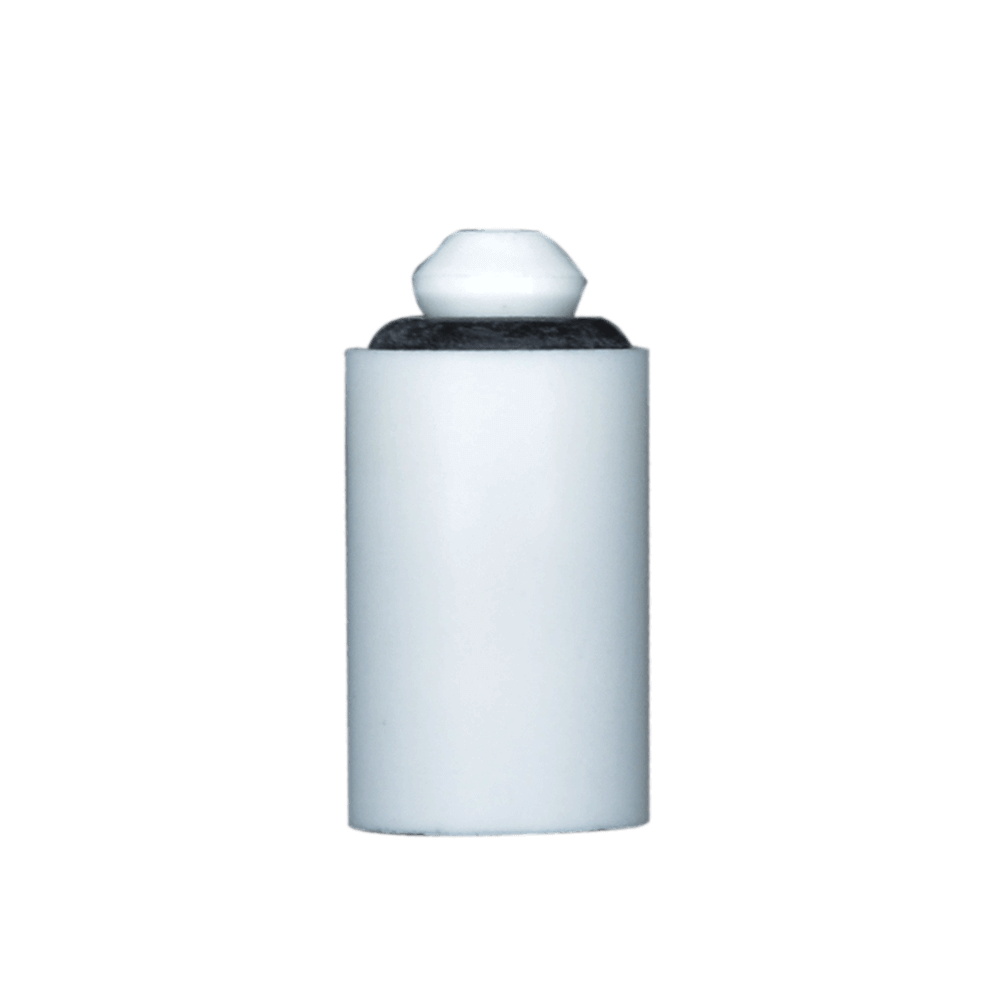

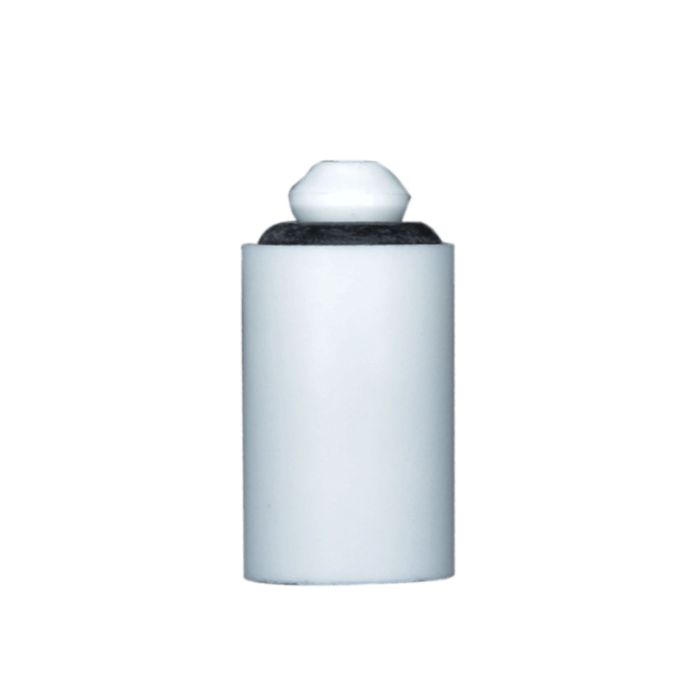

These Cartridge Insert Valves can be installed into tubing lines or glued into manifolds. The optional housing materials are Nylon, Polypropylene, Acrylic, Acetal, PVDF and Polycarbonate. Springs are 316 Stainless Steel or Hastelloy® (1/2 psi). O-Rings are of Buna-N, EPDM, FKM, Silicone and Kalrez. Available sizes are 1/4″, 5/16”, 3/8”, 1/2″, 5/8” and 3/4” OD. Standard crack pressure for all valves except 3/4″ OD is 3” H₂O 0.1 psi, 5 psi or 1.5 psi.
CRV Series – Cartridge Insert Valves
Description
| SKU | DESCRIPTION |
|---|---|
| CRV-12-11-PPB | 1/2" Polypropylene / Buna Seals 11 psi Insert Valve |
| CRV-14-10PPE | 1/4" Polypropylene / EPDM 10 psi Insert Valve |
| CRV-14-3-PPE | 1/4" Polypropylene / EPDM 3 psi Insert Valve |
| CRV-14-PB-.5 | 1/4" Polypropylene / Buna .5 psi Insert Valve |
| CRV-14-PB-1 | 1/4" Polypropylene / Buna 1 psi Insert Valve |
| CRV-14-PB-1.5 | 1/4" Polypropylene / Buna 1.5 psi Insert Valve |
| CRV-14-PB-2 | 1/4" Polypropylene / Buna 2 psi Insert Valve |
| CRV-14-PE-.1 | 1/4" Polypropylene / EPDM .1 psi Insert Valve |
| CRV-14-PV-.1 | 1/4" Polypropylene / FKM .1 psi Insert Valve |
| CRV-14-PV-.5 | 1/4" Polypropylene / FKM .5 psi Insert Valve |
| CRV-14-PV-1 | 1/4" Polypropylene / FKM 1 psi Insert Valve |
| CRV-14-PV-10 | 1/4" Polypropylene / FKM 10 psi Insert Valve |
| CRV-14-PV-2 | 1/4" Polypropylene / FKM 2 psi Insert Valve |
| CRV-14-PV-5 | 1/4" Polypropylene / FKM 5 psi Insert Valve |
| CRV-38-2-PPV | 3/8" Polypropylene / FKM 2 psi Insert Valve |
| CRV-38-PB-7.5 WC | 3/8" Polypropylene / Buna 7.5 WC Insert Valve |
| CRV-38-PPB-1 | 3/8" Polypropylene / Buna 1 psi Insert Valve |
| CRV4-1/10-NB | 1/4" 1/10 Nylon / Buna Insert Valve |
| CRV4-1/2H-PPV | 1/4" 1/2# Hastelloy® Polypropylene / FKM O-Ring Insert Valve |
| CRV4-10PPE | 1/4" 10# Polypropylene / EPDM Insert Valve |
| CRV4-4PPB | 1/4" 4# Polypropylene / Buna Insert Valve |
| CRV-4-P-V-.5 | 1/4" Polypropylene / FKM .50 psi Insert Valve |
| CRV-4-P-V-1 | 1/4" Polypropylene / FKM 1 psi Insert Valve |
| CRV-4-PV-6WC | 1/4" Polypropylene / FKM 6 inch WC Insert Valve |
| CRV-4-WP-V-.25 | 1/4" Polypropylene / FKM .25 psi Insert Valve |
| CRV-4-WP-V-.5 | 1/4" Polypropylene / FKM .50 psi Insert Valve |
| CRV532-14PC | 5/32" 14# Polycarbonate Insert Valve |
| CRV-532-2.5PC | 5/32" 2.5# Polycarbonate Insert Valve |
| CRV-532-2PC | 5/32" 2# Polycarbonate Insert Valve |
| CRV532-4 P | 5/32" 4# Polycarbonate Insert Valve |
