Description

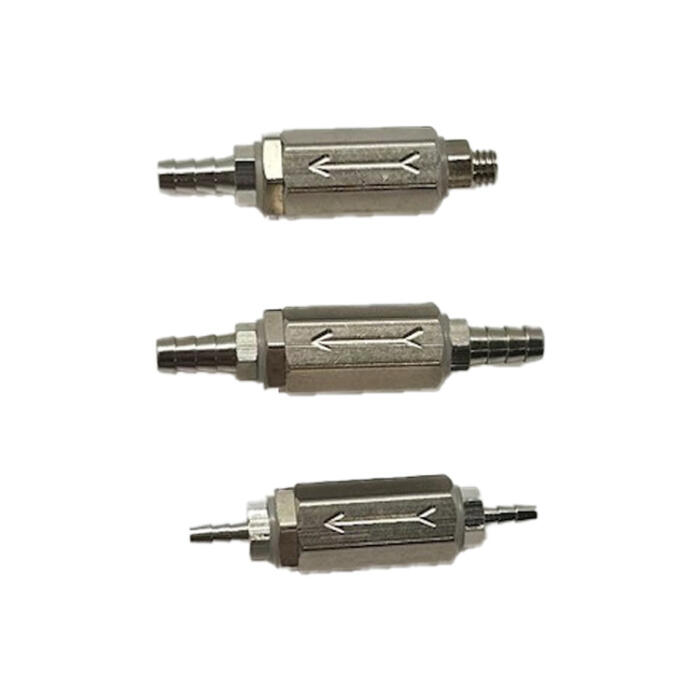

The BPCV Series Brass Piston Check Valves with nickel plate, are available with 10/32Female UNF threads. Added to this main configuration is male 10/32 fittings or 1/16, 1/8, 3/32, inch barbs added.
Seal options are Buna-N, EPDM and Viton®. Spring materials are Stainless Steel or Hastelloy. The valve is also available without a spring. The maximum operating pressure is 125 psi. The flow rate is 2.5 SCFM at 50 psi. Larger size made from machined brass are 1/8, 3/16, 1/4 and 5/16 barbs. These larger sizes, see optional products in the gallery, will handle 125 PSI.
| SKU | Description | Inlet | Outlet |
|---|---|---|---|
| BPCV-1032F-NS | Brass Piston No Spring | 10/32 F | 10/32 F |
| BPCV-10M10F-1-B | Brass Piston 1 PSI, Buna Seals | 10/32 Male | 10/32 Female |
| BPCV-10M10F-4.5-EPDM | Brass Piston 4.5 PSI EPDM Seals | 10/32 Male | 10/32 Female |
| BPCV-10F1B-1-EPDM | Brass Piston 1 PSI EPDM Seals | 10/32 Female | 1/16 Barb |
| BPCV-332B-10M-H1-V | Brass Piston Check Valve, 1PSI, Hastelloy FKM | 3/32 Barb | 10/32 Male |
| BPCV-1B-332B-1-B | Brass Piston 1 PSI EPDM Seals | 1/16 Barb | 3/32 Barb |
| BPCV-2B-E1 | Brass Piston1 PSI EPDM Seals | 1/8 Barb | 1/8 Barb |
| BPCV-2B-H1-V | Brass Piston Check Valve, 1PSI, Hastelloy FKM | 1/8 Barb | 1/8 Barb |
| BPCV-3B3B-E1 | Brass Machined 3/16 Piston 1 PSI EPDM | 3/16 Barb Machined | 3/16 Barb Machined |
| BPCV-5B5B-H4.5-V | Brass Machined Piston 4.5 Hastelloy FKM | 5/16 Barb Machined | 5/16 Barb Machined |
