Description

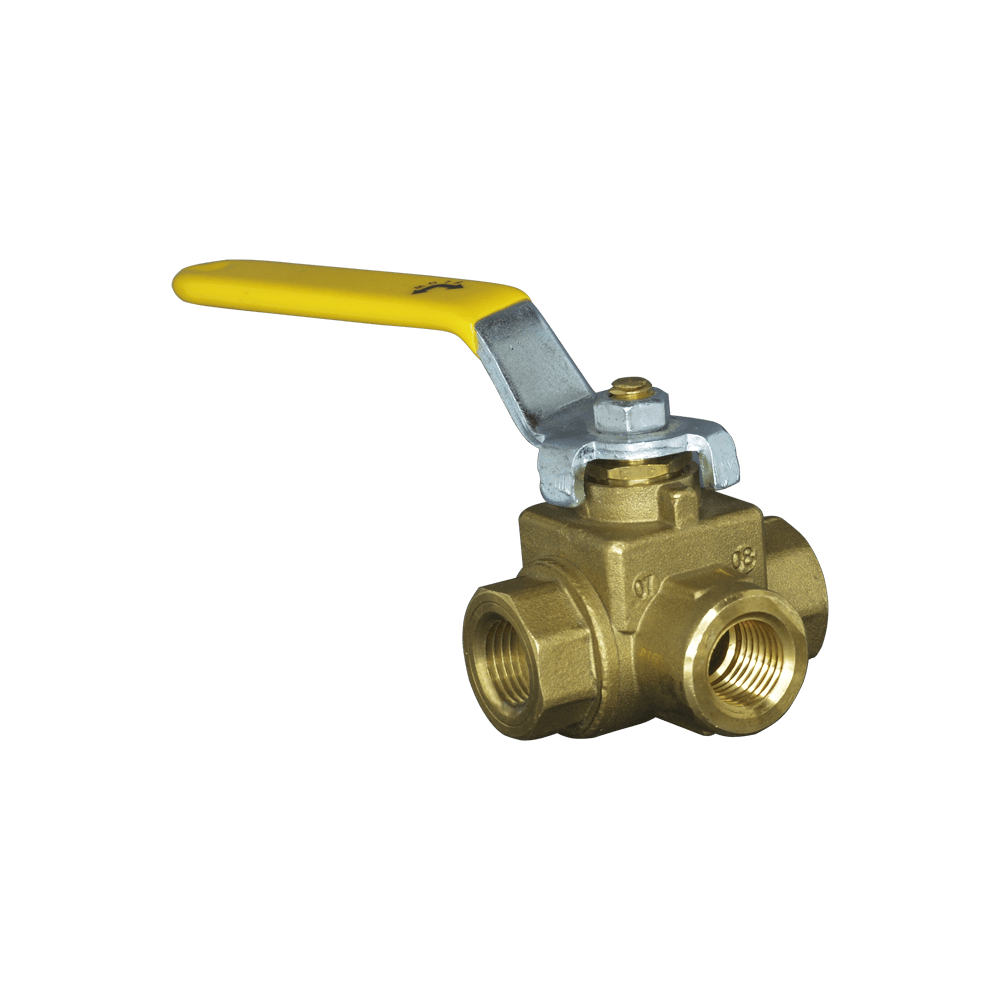

MBBV Series is a forged 3-way ball valve that offers flow options in both directions as well as allowing unimpeded flow when the handle is placed at a 45° angle. In addition, the temperature rating for this valve is 0-230°F. Also, the pressure rating of this ball valve is 600 WOG.
-Full Port
-Blow-Out Proof System
-Double O-Ring Stem Packing
-PTFE Seal
-Not Lead Free
| SKU | Description |
|---|---|
| MBBV-8F | 1/2 inch Female Full Port Brass 600 psi WOG Ball Valve |
| MBBV-4F | 1/4 inch Female Brass Ball Valve 600 psi Ball Valve |
| MBBV-6F | 3/8 inch Female Brass Ball Valve 600 psi Ball Valve |
| MBBV-12F | 3/4 inch Female Brass Ball Valve 600 psi Ball Valve |
| MBBV-16F | 1 inch Female Brass Ball Valve 600 psi Ball Valve |
| MBBV-20F | 1-1/4 inch Female Brass Ball Valve 600 psi Ball Valve |
| MBBV-24F | 1-1/2 inch Female Brass Ball Valve 600 psi Ball Valve |
| MBBV-32F | 2 inch Female Brass Ball Valve 600 psi Ball Valve |
| MBBV-40F | 2-1/2 inch Female Brass Ball Valve 600 psi Ball Valve |
| MBBV-48F | 3 inch Female Brass Ball Valve 600 psi Ball Valve |
| MBBV-64F | 4 inch Female Brass Ball Valve 600 psi Ball Valve |
