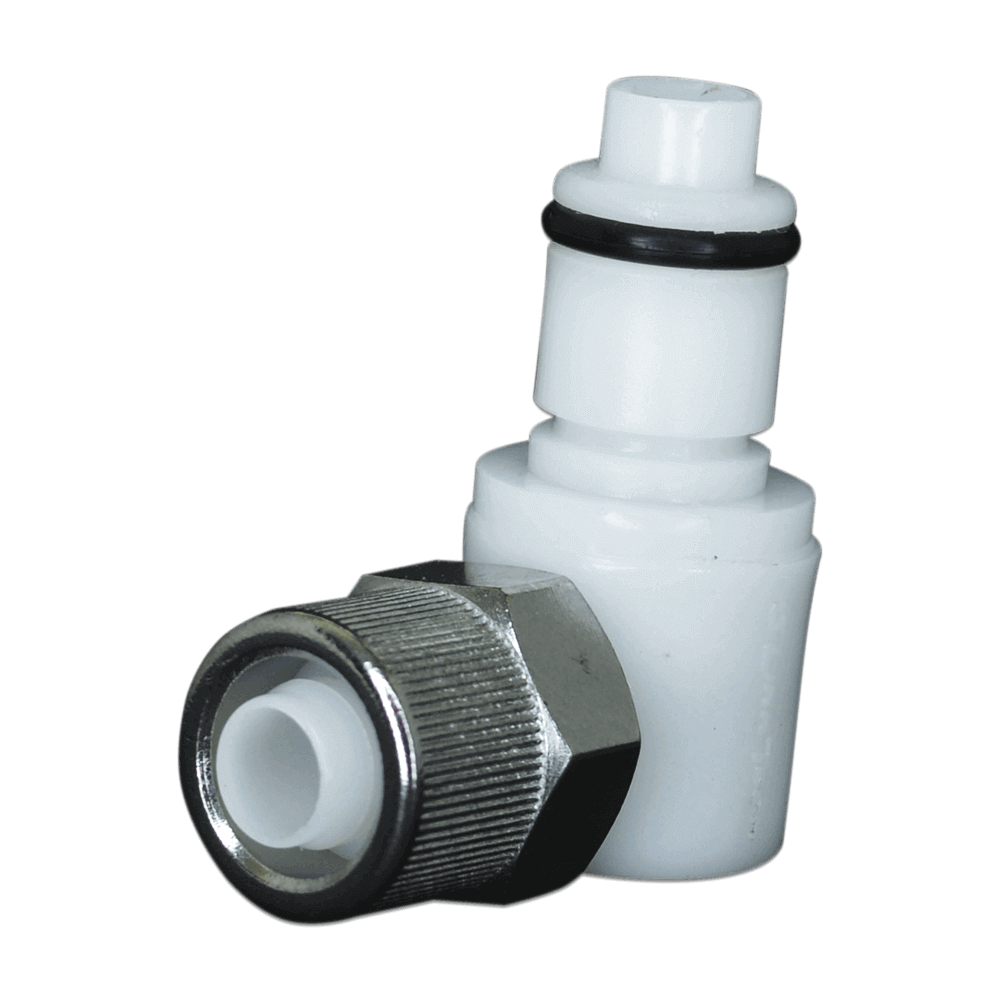

Acetal 1/4 flow, 90 degree insert with Compression Connection for Plastic Tubing
40AC PB10 PTF
Description
Acetal 1/4 flow, 90 degree male insert with Brass Plated Compression Fitting for use with Plastic Tubing 1/4 OD and 3/8 OD.
Inserts available with or w/O valved shutoff. Compatible with all 40 series Couplers.
| NON-VALVED | VALVED | TUBE SIZE | METRIC TUBE | L(nv/v) | WIDTH | HEGHT |
|---|---|---|---|---|---|---|
| 20AC-PB10-025 | 20ACV-PB10-025 | 5/32" OD, .10" ID | 4.0 MM OD, 2.5 MM ID | 1.09"/1.20" | .50" | .99" |
| 20AC-PB10-04 | 20ACV-PB10-04 | 1/4 OD", .17" ID | 6.4 MM OD, 4.3 MM ID | 1.09"/1.20" | .50" | 1.02" |
