Straight Push-To-Connect
PUC Series
Description

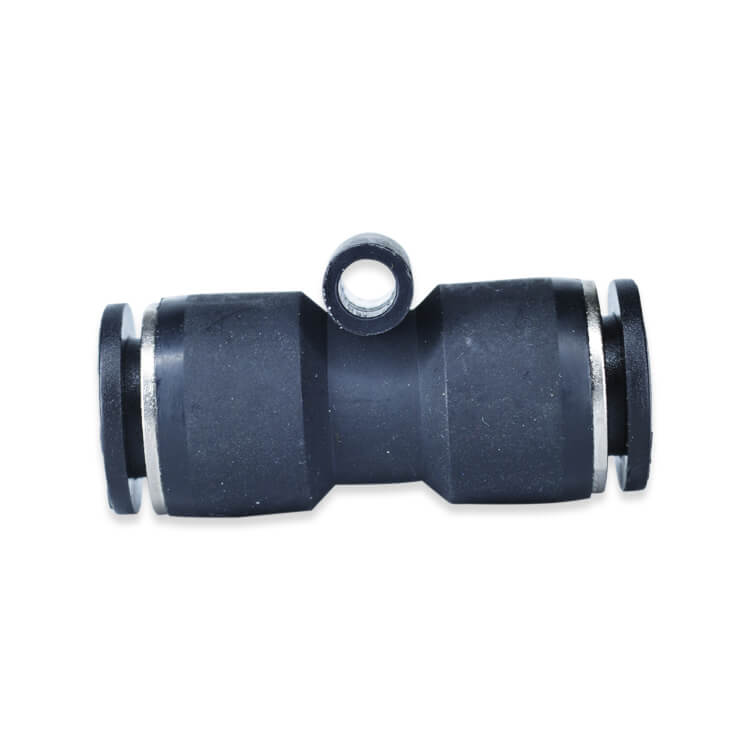

Compact Straight Fitting with two push-to-connect ports in opposite directions. The body is PBT resin. The working pressure is 150 psi and the temperature range is 32˚ F to 140˚ F. Suitable for applications involving compressed air and inert gases.
| SKU | DESCRIPTION |
|---|---|
| PUC-12P | 1/2 OD PBT Push-to-Connect Union |
| PUC-14P | 1/4 OD PBT Push-to-Connect Union |
| PUC-18P | 1/8 OD PBT Push-to-Connect Union |
| PUC-316P | 3/16 OD PBT Push-to-Connect Union |
| PUC-38-P | 3/8 OD PBT Push-to-Connect Union |
| PUC-516-P | 5/16 OD PBT Push-to-Connect Union |
| PUC-532-P | 5/32 OD PBT Push-to-Connect Union |
| PUC-58P | 5/8 OD PBT Push-to-Connect Union |
| PUC-4MM-P | 4 mm OD PBT Push-to-Connect Union |
| PUC-6MM-P | 6 mm OD PBT Push-to-Connect Union |
| PUC-8MM-P | 8 mm OD PBT Push-to-Connect Union |
| PUC-10MM-P | 10 mm OD PBT Push-to-Connect Union |
| PUC-18BR | 1/8 OD Brass Push-to-Connect Union |
