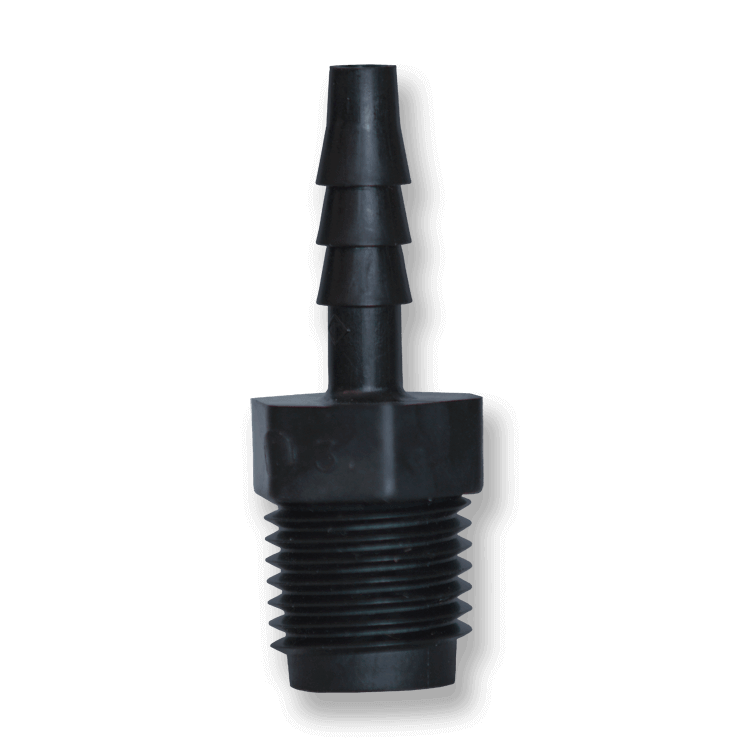

The AM Series is an MNPT by a triple barbed adapter. It is molded of NSF listed Natural Nylon or NSF listed Black Polyethylene. Optional materials are: Black Nylon, PVC, FDA listed Natural Polypropylene, and FDA listed Black Polypropylene. The MNPT threads sizes available are 1/8 inch, 1/4 inch, 3/8 inch, 1/2 inch, 3/4 inch, 1 inch, 1-1/4 inch, 1-1/2 inch, and 2 inches. The barb sizes are 3/16 inch, 1/4 inch, 5/16 inch, 3/8 inch, 5/32 inch, 1 inch, 1-1/4 inch, and 1-1/2 inch. Barbed fittings over one inch are not offered in Polyethylene. The temperature range is -40° F to 200° F and the maximum working pressure is 125 psi.
AM MULTI BARB THREADED ADAPTER
Description
| SKU | Description |
|---|---|
| AM-2M532B | Adapter 1/8 MNPT 5/32 Barb |
| AM-2M3B | Adapter 1/8 MNPT 3/16 Barb |
| AM-2M4B | Adapter 1/8 MNPT 1/4 Barb |
| AM-2M5B | Adapter 1/8 MNPT 5/16 Barb |
| AM-2M6B | Adapter 1/8 MNPT 3/8 Barb |
| AM-2M8B | Adapter 1/8 MNPT 1/2 Barb |
| AM-32M32B | Adapter 2 inch MNPT 2 inch Barb |
| AM-4M532B | Adapter 1/4 MNPT by 5/32 Barb |
| AM-4M3B | Adapter 1/4 MNPT 3/16 Barb |
| AM-4M4B | Adapter 1/4 MNPT 1/4 Barb |
| AM-4M5B | Adapter 1/4 MNPT 5/16 Barb |
| AM-4M6B | Adapter 1/4 MNPT 3/8 Barb |
| AM-4M8B | Adapter 1/4 MNPT 1/2 Barb |
| AM-6M4B | Adapter 3/8 MNPT 1/4 Barb |
| AM-6M5B | Adapter 3/8 MNPT 5/16 Barb |
| AM-6M6B | Adapter 3/8 MNPT 3/8 Barb |
| AM-6M8B | Adapter 3/8 MNPT 1/2 Barb |
| AM-6M10B | Adapter 3/8 MNPT 5/8 Barb |
| AM-8M3B | Adapter 1/2 MNPT 3/16 Barb |
| AM-8M4B | Adapter 1/2 MNPT 1/4 Barb |
| AM-8M6B | Adapter 1/2 MNPT 3/8 Barb |
| AM-8M8B | Adapter 1/2 MNPT 1/2 Barb |
| AM-8M10B | Adapter 1/2 MNPT 5/8 Barb |
| AM-8M12B | Adapter 1/2 MNPT 3/4 Barb |
| AM-8M16B | Adapter 1/2 MNPT 1 inch Barb |
| AM-12M4B | Adapter 3/4 MNPT 1/4 Barb |
| AM-12M6B | Adapter 3/4 MNPT 3/8 Barb |
| AM-12M8B | Adapter 3/4 MNPT 1/2 Barb |
| AM-12M10B | Adapter 3/4 MNPT 5/8 Barb |
| AM-12M12B | Adapter 3/4 MNPT 3/4 Barb |
| AM-12M16B | Adapter 3/4 MNPT 1 inch Barb |
| AM-16M8B | Adapter 1 inch MNPT by 1/2 inch Barb |
| AM-16M12B | Adapter 1 inch MNPT 3/4 Barb |
| AM-16M16B | Adapter 1 inch MNPT 1 inch Barb |
| AM-16M20B | Adapter 1 inch MNPT 1-1/4 inch Barb |
| AM-16M24B | Adapter 1 inch MNPT 1-1/2 inch Barb |
| AM-20M12B | Adapter 1-1/4 inch MNPT 3/4 Barb |
| AM-20M16B | Adapter 1-1/4 inch MNPT 1 inch Barb |
| AM-20M20B | Adapter 1-1/4 inch MNPT 1-1/4 Barb |
| AM-20M24B | Adapter 1-1/4 inch MNPT 1-1/2 inch Barb |
| AM-24M12B | Adapter 1-1/2 inch MNPT 3/4 Barb |
| AM-24M16B | Adapter 1-1/2 inch MNPT 1 inch Barb |
| AM-24M20B | Adapter 1-1/2 inch MNPT 1-1/4 inch Barb |
| AM-24M24B | Adapter 1-1/2 inch MNPT 1-1/2 inch Barb |
| AM-24M32B | Adapter 1-1/2 inch MNPT by 2 inch Barb |
