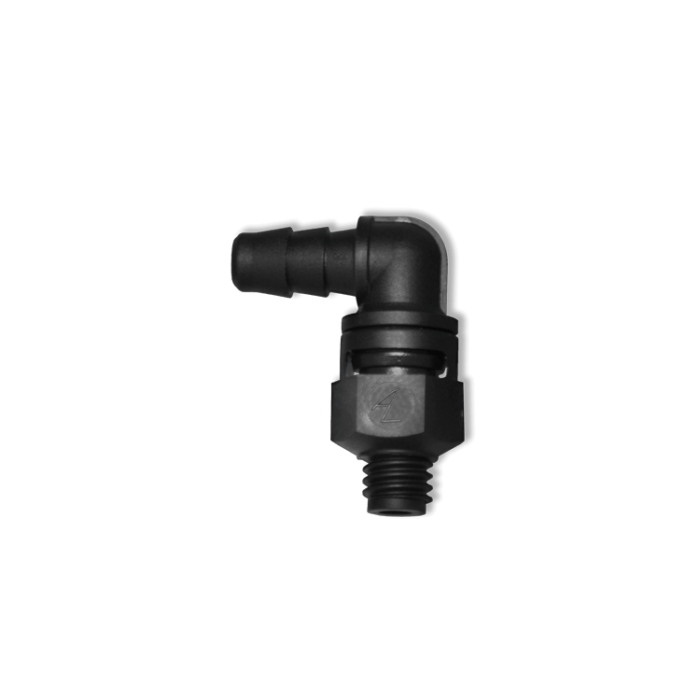

The ALS-IG Series Swivel Adapter Elbow allows tubing to be rotated 360° into position without crimping. These Swivel Elbows are made of Black Nylon. The male threads are 10-32 inch UNF or 1/8 inch and 1/4 inch male NPT. The barb sizes are 1/16 inch, 3/32 inch, and 1/8 inch. The 10-32 inch UNF threads are self-sealing, the 1/8 inch and 1/4 inch threads seal with a Buna-N, EPDM or Viton® O-Ring. The working pressure is 125 psi and the working temperature range is -50° F to 180° F.
ALS-IG SWIVEL ADAPTER ELBOW
Description
| SKU | Description |
|---|---|
| ALS-IG-10X1B | 10-32 inch Male UNF by 1/16 inch Black Nylon Single Barbed Elbow Swivel |
| ALS-IG-10X332B | 10-32 inch Male UNF by 3/32 inch Black Nylon Single Barbed Elbow Swivel |
| ALS-IG-10X2B | 10-32 inch Male UNF by 1/8 inch Black Nylon Single Barbed Elbow Swivel |
| ALS-IG-2MX1B | 1/8 inch MNPT by 1/16 inch Black Nylon Single Barbed Elbow Swivel |
| ALS-IG-2MX332B | 1/8 inch MNPT by 3/32 inch Black Nylon Single Barbed Elbow Swivel |
| ALS-IG-2MX2B | 1/8 inch MNPT by 1/8 inch Black Nylon Single Barbed Elbow Swivel |
| ALS-IG-4MX1B | 1/4 inch MNPT by 1/16 inch Black Nylon Single Barbed Elbow Swivel |
| ALS-IG-4MX332B | 1/4 inch MNPT by 3/32 inch Black Nylon Single Barbed Elbow Swivel |
| ALS-IG-4MX2B | 1/4 inch MNPT by 1/8 inch Black Nylon Single Barbed Elbow Swivel |
