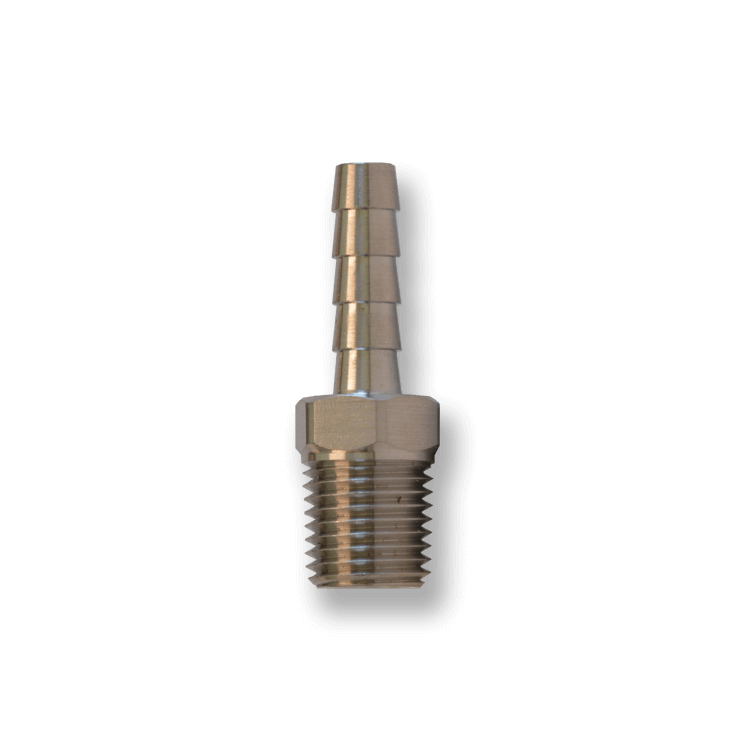

The SKB Series are machined 316 Stainless Steel multi-barbed adapters. Comes in various combinations of sizes ranging from 1/8 inch to 3/4 inch. Some sizes are available in BSPT (listed). The maximum working pressure is 150 psi and the working temperature range is -40º F to 350º F.
SKB Series
Description
| SKU | Description |
|---|---|
| SKB-2M2B-316 | 1/8 inch MNPT by 1/8 inch Barbed 316 Stainless Steel Adapter |
| SKB-2M3B-316 | 1/8 inch MNPT by 3/16 inch Barbed 316 Stainless Steel Adapter |
| SKB-2M4B-316 | 1/8 inch MNPT by 1/4 inch Barbed 316 Stainless Steel Adapter (BSPT Available) |
| SKB-2M5B-316 | 1/8 inch MNPT by 5/16 inch Barbed 316 Stainless Steel Adapter |
| SKB-2M6B-316 | 1/8 inch MNPT by 3/8 inch Barbed 316 Stainless Steel Adapter |
| SKB-4M3B-316 | 1/4 inch MNPT by 1/8 inch Barbed 316 Stainless Steel Adapter |
| SKB-4M4B-316 | 1/4 inch MNPT by 1/4 inch Barbed 316 Stainless Steel Adapter (BSPT Available) |
| SKB-4M5B-316 | 1/4 inch MNPT by 5/16 inch Barbed 316 Stainless Steel Adapter |
| SKB-4M6B-316 | 1/4 inch MNPT by 3/8 inch Barbed 316 Stainless Steel Adapter (BSPT Available) |
| SKB-4M8B-316 | 1/4 inch MNPT by 1/2 inch Barbed 316 Stainless Steel Adapter |
| SKB-6M4B-316 | 3/8 inch MNPT by 1/4 inch Barbed 316 Stainless Steel Adapter |
| SKB-6M5B-316 | 3/8 inch MNPT by 5/16 inch Barbed 316 Stainless Steel Adapter |
| SKB-6M6B-316 | 3/8 inch MNPT by 3/8 inch Barbed 316 Stainless Steel Adapter (BSPT Available) |
| SKB-6M8B-316 | 3/8 inch MNPT by 1/2 inch Barbed 316 Stainless Steel Adapter (BSPT Available) |
| SKB-6M10B-316 | 3/8 inch MNPT by 5/8 inch Barbed 316 Stainless Steel Adapter |
| SKB-8M6B-316 | 1/2 inch MNPT by 3/8 inch Barbed 316 Stainless Steel Adapter (BSPT Available) |
| SKB-8M8B-316 | 1/2 inch MNPT by 1/2 inch Barbed 316 Stainless Steel Adapter (BSPT Available) |
| SKB-8M10B-316 | 1/2 inch MNPT by 5/8 inch Barbed 316 Stainless Steel Adapter |
| SKB-8M12B-316 | 1/2 inch MNPT by 3/4 inch Barbed 316 Stainless Steel Adapter (BSPT Available) |
| SKB-12M8B-316 | 3/4 inch MNPT by 1/2 inch Barbed 316 Stainless Steel Adapter |
| SKB-12M10B-316 | 3/4 inch MNPT by 5/8 inch Barbed 316 Stainless Steel Adapter |
| SKB-12M12B-316 | 3/4 inch MNPT by 3/4 inch Barbed 316 Stainless Steel Adapter |
