Also Available in 316 Stainless Steel
RBSS Series
Description

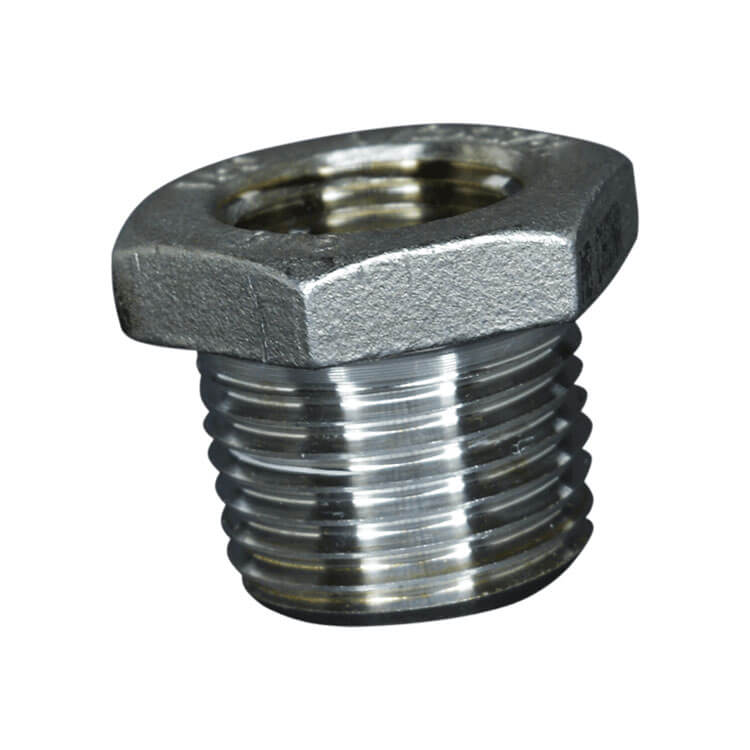

The RBSS Series is a 304 Stainless Steel Hex Bushing.
| SKU | DESCRIPTION |
|---|---|
| RBSS-4M2F | 1/4 MNPT by 1/8 FNPT Hex Bushing |
| RBSS-6M2F | 3/8 MNPT by 1/8 FNPT Hex Bushing |
| RBSS-6M4F | 3/8 MNPT by 1/4 FNPT Hex Bushing |
| RBSS-8M2F | 1/2 MNPT by 1/8 FNPT Hex Bushing 304 only |
| RBSS-8M4F | 1/2 MNPT by 1/4 FNPT Hex Bushing |
| RBSS-8M6F | 1/2 MNPT by 3/8 FNPT Hex Bushing |
| RBSS-12M2F | 3/4 MNPT by 1/8 FNPT Hex Bushing |
| RBSS-12M4F | 3/4 MNPT by 1/4 FNPT Hex Bushing |
| RBSS-12M6F | 3/4 MNPT by 3/8 FNPT Hex Bushing |
| RBSS-12M8F | 3/4 MNPT by 1/2 FNPT Hex Bushing |
| RBSS-16M4F | 1 inch MNPT by 1/4 FNPT Hex Bushing |
| RBSS-16M6F | 1 inch MNPT by 3/8 FNPT Hex Bushing |
| RBSS-16M8F | 1 inch MNPT by 1/2 FNPT Hex Bushing |
| RBSS-16M12F | 1 inch MNPT by 3/4 FNPT Hex Bushing |
| RBSS-20M4F | 1-1/4 inch MNPT by 1/4 FNPT Hex Bushing |
| RBSS-20M6F | 1-1/4 inch MNPT by 3/8 FNPT Hex Bushing |
| RBSS-20M8F | 1-1/4 inch MNPT by 1/2 FNPT Hex Bushing |
| RBSS-20M12F | 1-1/4 inch MNPT by 3/4 FNPT Hex Bushing |
| RBSS-20M16F | 1-1/4 inch MNPT by 1 FNPT Hex Bushing |
| RBSS-24M4F | 1-1/2 inch MNPT by 1/4 FNPT Hex Bushing |
| RBSS-24M6F | 1-1/2 inch MNPT by 3/8 FNPT Hex Bushing |
| RBSS-24M8F | 1-1/2 inch MNPT by 1/2 FNPT Hex Bushing |
| RBSS-24M12F | 1-1/2 inch MNPT by 3/4 FNPT Hex Bushing |
| RBSS-24M16F | 1-1/2 inch MNPT by 1 inch FNPT Hex Bushing |
| RBSS-24M20F | 1-1/2 inch MNPT by 1-1/4 inch FNPT Hex Bushing |
| RBSS-32M8F | 2 inch MNPT by 1/2 FNPT Hex Bushing |
| RBSS-32M12F | 2 inch MNPT by 3/4 FNPT Hex Bushing |
| RBSS-32M16F | 2 inch MNPT by 1 inch FNPT Hex Bushing |
| RBSS-32M20F | 2 inch MNPT by 1-1/4 inch FNPT Hex Bushing |
| RBSS-32M24F | 2 inch MNPT by 1-1/2 inch FNPT Hex Bushing |
| RBSS-40M16F | 2-1/2 inch MNPT by 1 inch FNPT Hex Bushing |
| RBSS-40M20F | 2-1/2 inch MNPT by 1-1/4 inch FNPT Hex Bushing |
| RBSS-40M24F | 2-1/2 inch MNPT by 1-1/2 inch FNPT Hex Bushing |
| RBSS-40M32F | 2-1/2 inch MNPT by 2 inch FNPT Hex Bushing |
| RBSS-48M16F | 3 inch MNPT by 1 inch FNPT Hex Bushing |
| RBSS-48M20F | 3 inch MNPT by 1-1/4 inch FNPT Hex Bushing |
| RBSS-48M24F | 3 inch MNPT by 1-1/2 inch FNPT Hex Bushing |
| RBSS-48M32F | 3 inch MNPT by 2 inch FNPT Hex Bushing 304 only |
| RBSS-48M40F | 3 inch MNPT by 2-1/2 inch FNPT Hex Bushing |
