Description

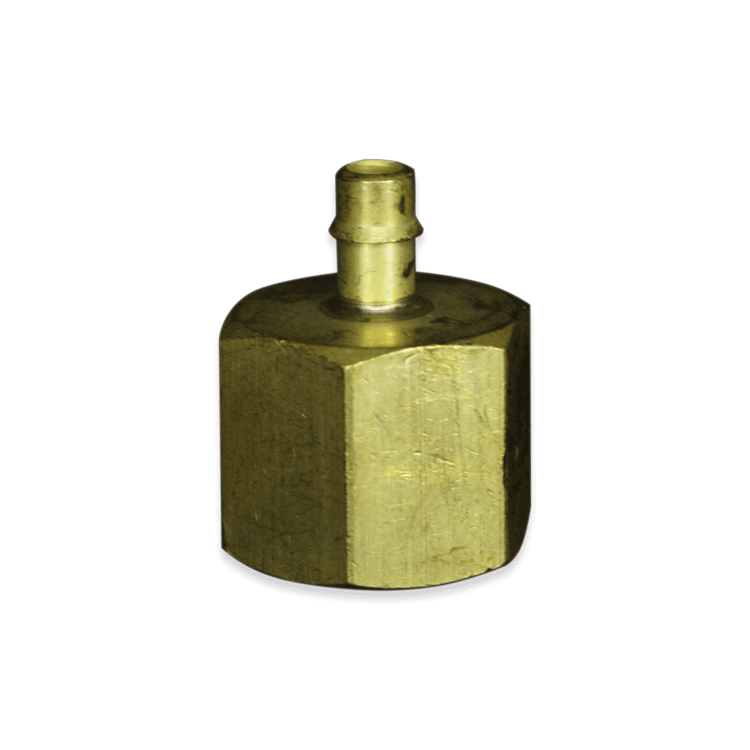

The DFA Series is a Brass female NPT threads-to-bite-style barb adapter. Available in sizes ranging from 1/8 inch to 1/2 inch. This fitting has excellent vibration resistance and requires no clamp. The maximum working pressure is 150 psi and the temperature range is -65° F to 90° F. This fitting can be used in humidifiers, pneumatic systems, and filters.
| SKU | Description |
|---|---|
| DFA-18170 | 1/8 inch FNPT by .170 ID Brass Female Adapter |
| DFA-18250 | 1/8 inch FNPT by .250 ID Brass Female Adapter |
| DFA-18332 | 1/8 inch FNPT by 3/32 inch ID Brass Female Adapter |
