Description

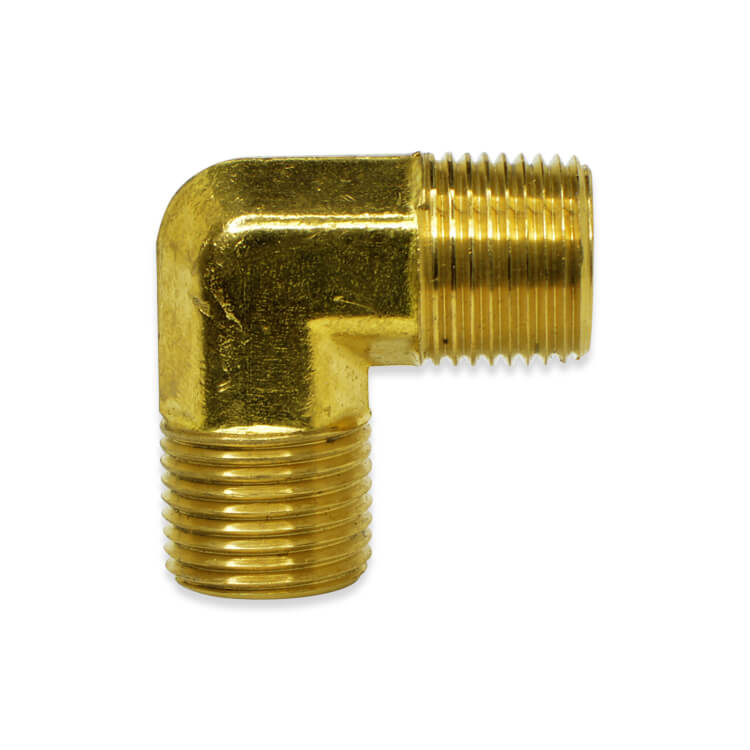

The BME Series is a 90° Brass forged Elbow, available in both equal and reducing sizes. Available Male NPT thread sizes are 1/8 inch, 1/4 inch, 3/8 inch, and 1/2 inch. The temperature range is -65° F to 250° F. The operating pressure is 1200 psi. They can be used for grease, fuels, refrigeration, and hydraulic applications. They meet ASA, ASME, and SAE specifications. Nickel-plated brass is available.
| SKU | Description |
|---|---|
| BME-2 | 1/8 MNPT Forged Brass Elbow NP |
| BME-4 | 1/4 MNPT Forged Brass Elbow NP |
| BME-6 | 3/8 MNPT Forged Brass Elbow NP |
| BME-8 | 1/2 MNPT Forged Brass Elbow NP |
| BME-8-4 | 1/2 MNPT by 1/4 MNPT Forged Elbow Reducer |
| BME-6-4 | 3/8 MNPT by 1/4 MNPT Forged Elbow Reducer |
| BME-8-6 | 3/8 MNPT by 1/4 MNPT Forged Elbow Reducer |
