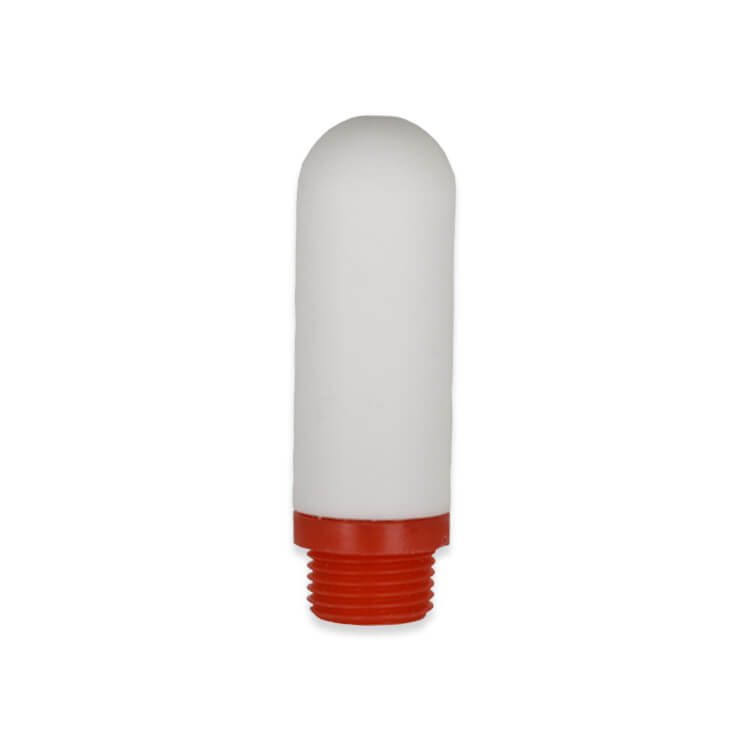

The TS Series mufflers are made of a high density, porous Polyethylene body on a solid Polyethylene base. The base is molded with 1/8 inch, 1/4 inch, 3/8 inch, 1/2 inch, 3/4 inch, and 1 inch MNPT threads. The maximum pressure is 150 psi and the temperature range is 41˚ F to 140˚ F. The TS Muffler is available in four different air flows: 250 microns (green base), 70 microns (black base), 35 microns (red base) and 20 microns (blue base).
TS Series
Description
| SKU | Description |
|---|---|
| TS-2M-20 | 1/8 inch MNPT 20 Micron Blue Muffler |
| TS-2M-35 | 1/8 inch MNPT 35 Micron Red Muffler |
| TS-2M-70 | 1/8 inch MNPT 70 Micron Black Muffler |
| TS-4M-20 | 1/4 inch MNPT 20 Micron Blue Muffler |
| TS-4M-250 | 1/4 inch MNPT 250 Micron Green Muffler |
| TS-4M-35 | 1/4 inch MNPT 35 Micron Red Muffler |
| TS-4M-70 | 1/4 inch MNPT 70 Micron Black Muffler |
| TS-6M-20 | 3/8 inch MNPT 20 Micron Blue Muffler |
| TS-6M-35 | 3/8 inch MNPT 35 Micron Red Muffler |
| TS-6M-70 | 3/8 inch MNPT 70 Micron Black Muffler |
| TS-6M-250 | 3/8 inch MNPT 250 Micron Green Muffler |
| TS-8M-20 | 1/2 inch MNPT 20 Micron Blue Muffler |
| TS-8M-250 | 1/2 inch MNPT 250 Micron Green Muffler |
| TS-8M-35 | 1/2 inch MNPT 35 Micron Red Muffler |
| TS-8M-70 | 1/2 inch MNPT 70 Micron Black Muffler |
| TS-12M-20 | 3/4 inch MNPT 20 Micron Blue Muffler |
| TS-12M-250 | 3/4 inch MNPT 250 Micron Green Muffler |
| TS-12M-35 | 3/4 inch MNPT 35 Micron Red Muffler |
| TS-12M-70 | 3/4 inch MNPT 70 Micron Black Muffler |
| TS-16M-20 | 1 inch MNPT 20 Micron Blue Muffler |
| TS-16M-35 | 1 inch MNPT 35 Micron Red Muffler |
| TS-16M-70 | 1 inch MNPT 70 Micron Black Muffler |
