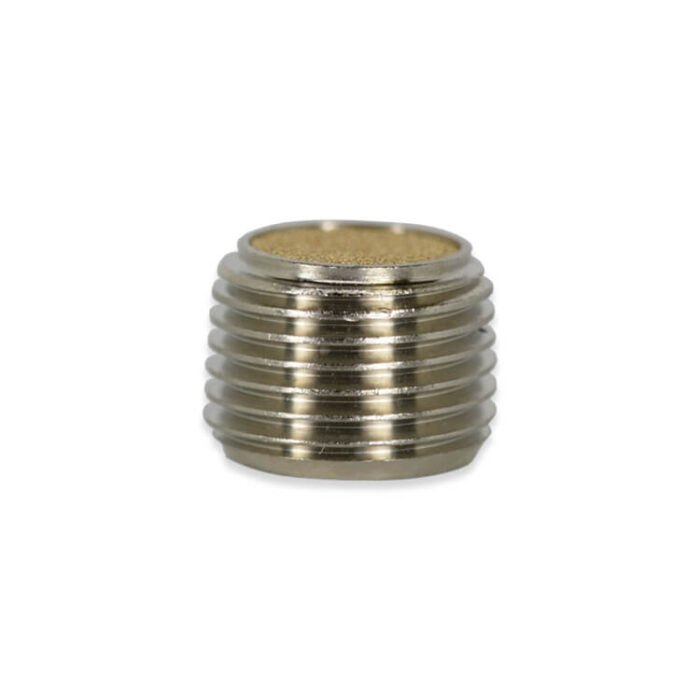

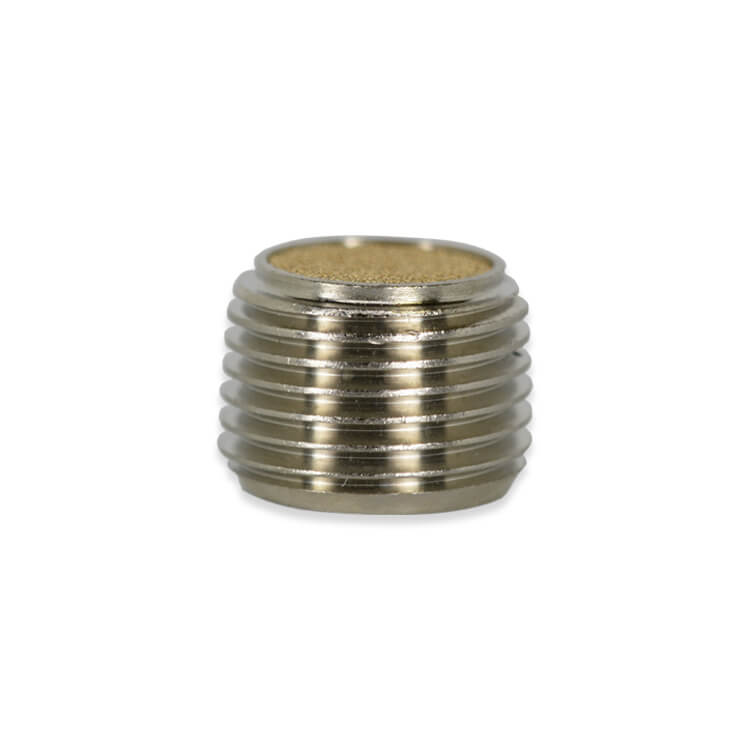

Nickel Plated Brass countersink plug vents will fit flush in any application: gear boxes, storage tanks, single action cylinders. The Male NPT thread sizes are 1/8”-27, 1/4”-18, 3/8”-18, and 1/2”-14. A 40 micron sintered Bronze filter is standard but optional 10 micron and 90 micron are available. Maximum operating pressure is 150 psi and the operating temperature is 35˚ F to 300˚ F.
VTS-P
Description
| SKU | Description |
|---|---|
| VTS-P-18 | 1/8-27 Nickel-Plated Plug Vent |
| VTS-P-14 | 1/4-18 Nickel-Plated Plug Vent |
| VTS-P-38 | 3/8 MNPT Nickel-Plated Plug Vent |
| VTS-P-12 | 1/2 MNPT Nickel-Plated Plug Vent |
