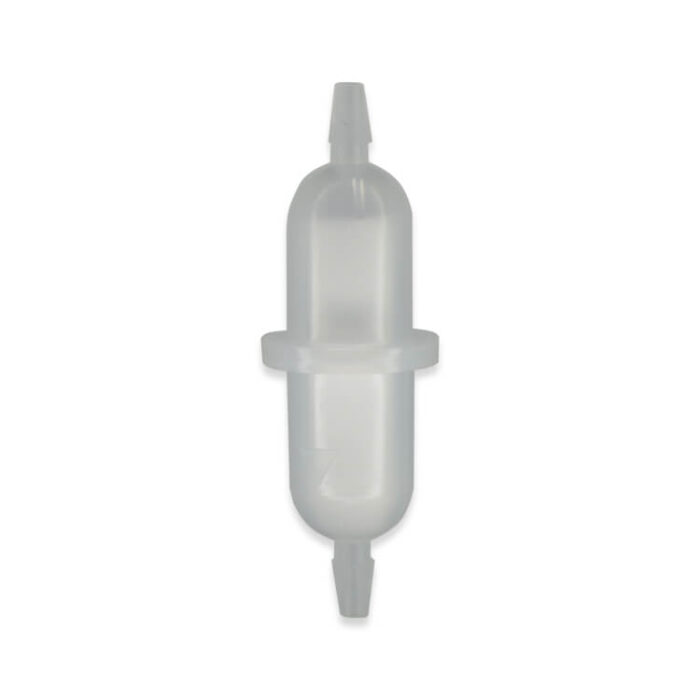

The FV Series single barbed Inline Filter is used for compressed air or vacuum. These units have a Polypropylene housing with a porous Polyethylene filter. They can be used to protect vacuum pumps and switches and valves from contamination. Units are available with a 1/8 inch barb or with a male luer fitting on each end, measuring 2.4 inch in length and .75 inch in diameter. Filters are available with 10 or 25 micron filters. The recommended working pressure is 65 psi.
FV INLINE FILTER
Description
| SKU | Description |
|---|---|
| FV-2B-10 | 1/8 inch Barb 10 Micron Vacuum Filter |
| FV-2B-25 | 1/8 inch Barb 25 Micron Vacuum Filter |
| FV-ML-10 | Male Luer 10 Micron Vacuum Filter |
| FV-ML-25 | Male Luer 25 Micron Vacuum Filter |
