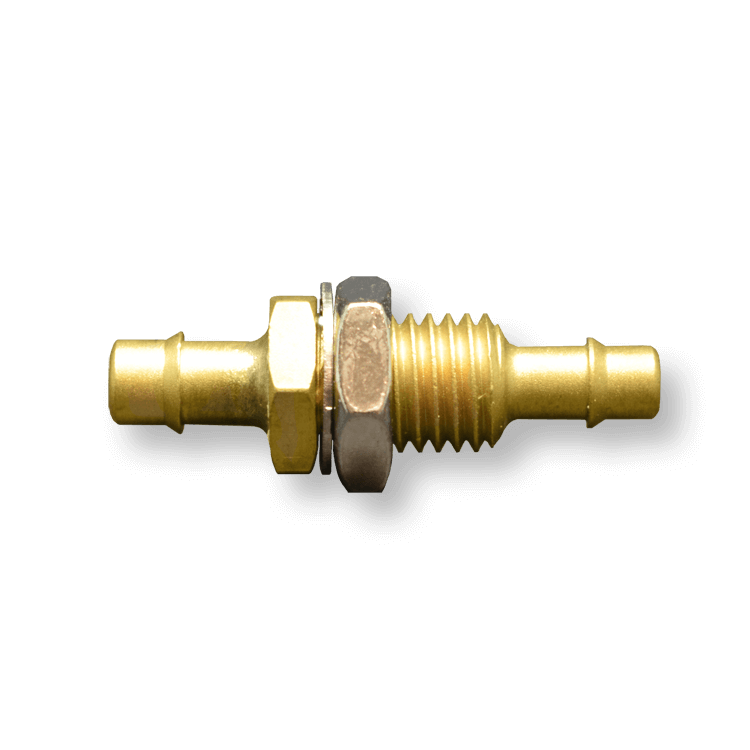

Brass Bulkheads with Bite-Style Barbs. 10-32 mounting Threads for 1/16 inch, .078, and 3/32 inch. ¼-28 mounting Thread with 1/16 inch thru hole to 5/32 inch Barb. 5/16-24 mounting Thread with 1/16 inch thru hole to 3/16 inch Barb. 3//8-24 mounting Thread with 1/16 inch thru hole to 3/8 inch Barb. Mixed sizes are available for Straight and Elbow models.
BB Series
Description
| SKU | Description |
|---|---|
| BB-10-170B078B | 10-32 by .170 by .078 Barb Brass Reducing Bulkhead |
| BB-10-170B332B | 10-32 by .170 by 3/32 Barb Brass Reducing Bulkhead |
| BB-10-1B | 10-32 by 1/16 Barb Brass Bulkhead |
| BB-10-2B1B | 10-32 by 1/8 by 1/16 Barb Brass Reducing Bulkhead |
| BB-10-332B | 10-32 by 3/32 Barb Brass Bulkhead |
| BB-10-332B1B | 10-32 by 3/32 by 1/16 Barb Brass Reducing Bulkhead |
| BB-10-332B1B-NP | 10-32 by 3/32 by 1/16 Barb Nickel Plated Bulkhead |
| BB-14-2B | 1/4-28 by 1/8 Barb Brass Bulkhead |
| BB-14-6B1B | 1/4-28 by 3/8 by 1/16 Barb Brass Reducing Bulkhead |
| BB-14-O-2B | 1/4-28 by 1/8 Barb Brass Reducing Bulkhead O-ring |
| BB-1M-5B332B | 1/16 NPT 5/16 by 3/32 Barb Brass Reducing Bulkhead |
| BB-2M-5B332B | 1/8 NPT 5/16 by 3/32 Barb Brass Reducing Bulkhead |
| BB-2M-6B4B | 1/8 NPT 3/8 by 1/4 Barb Brass Reducing Bulkhead |
| BB-38-3B-SS | 3/8-24 3/16 Barb 303 Stainless Bulkhead |
| BB-38-4B | 3/8-24 1/4 Barb Brass Bulkhead |
| BB-38-4B-170B | 3/8-24 by 1/4 by .170 Barb Brass Reducing Bulkhead |
| BB-38-4B-170B-SS | 3/8-24 by 1/4 by .170 Barb Stainless Steel Bulkhead |
| BB-38-4B-3B | 3/8-24 by 1/4 by 3/16 Barb Brass Reducing Bulkhead |
| BB-38-4B-NP | 3/8-24 by 1/4 Barb Brass Nickel Plated Bulkhead |
| BB-38-4B-SS | 3/8-24 by 1/4 Barb 303 Stainless Bulkhead |
| BB-38-6B1B | 3/8-24 by 3/8 by 1/16 Barb Brass Reducing Bulkhead |
| BB-38-6B2DB | 3/8-24 by 3/8 by 1/8 Double Barb Brass Reducing Bulkhead |
| BB-38-6B2DB-020 | 3/8-24 by 3/8 by 1/8 Double Barb, 020 Orifice Brass Reducing Bulkhead |
| BB-38-6B4B | 3/8-24 by 3/8 by 1/4 Barb Brass Reducing Bulkhead |
| BB-516-170532 | 5/16-24 by .170 by 5/32 Barb Brass Reducing Bulkhead |
| BB-516-170732 | 5/16-24 by .170 by .732 Barb Brass Reducing Bulkhead |
| BB-516-170B | 5/16-24 by .170 Barb Bulkhead |
