Description

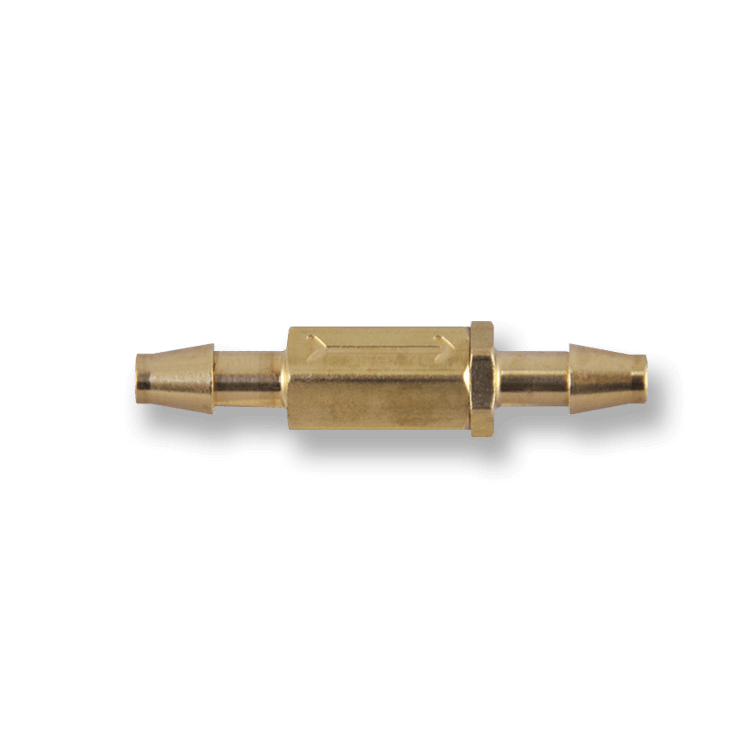

The BPCV Series Brass Piston Check Valves are available in inlet and outlet sizes of 1/8 inch, 3/16 inch, 1/4 inch, and 5/16 barbs. Seal options are Buna-N, EPDM and Viton®. Spring materials are Hastelloy and Stainless Steel but the valve is also available without a spring. The maximum operating pressure is 125 psi. The flow rate is 2.5 SCFM at 50 psi.
| SKU | Description |
|---|---|
| BPCV-332B | 3/32 Barb Piston Check Valve |
| BPCV-2B | 1/8 inch Barb Brass Piston Check Valve |
| BPCV-2B-E1 | 1/8 inch Barb EPDM Piston Check Valve 1 psi |
| BPCV-3B | 3/16 Barb Piston Check Valve |
| BPCV-4B | 1/4 Barb Piston Check Valve |
| BPCV-5 | 5/16 Barb Piston Check Valve |
