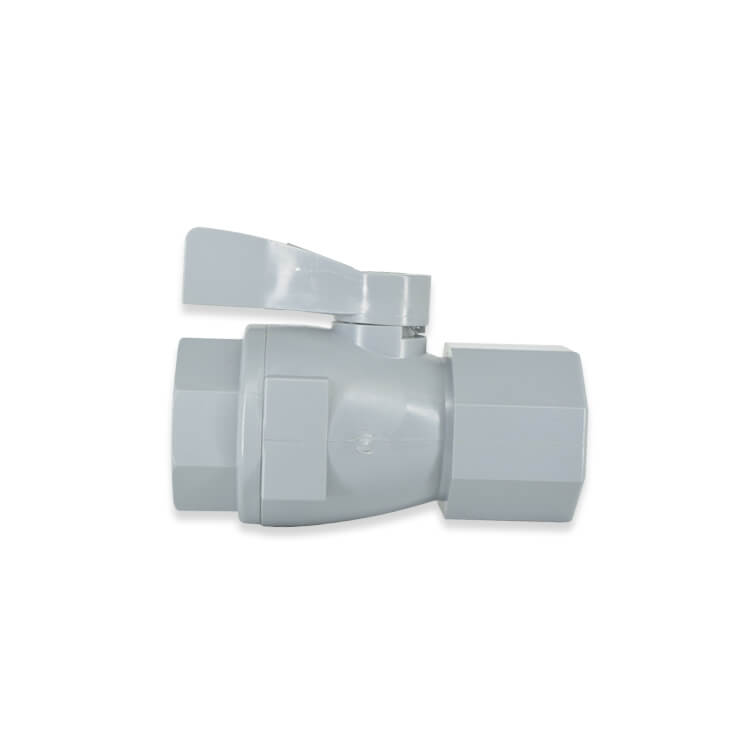

The LGH Series is a Two-way Ball Valve. It has an operating pressure of 150 psi, and a working temperature up to 140° F. Available in variations of Female and Male GHT, and Female and Male NPT with combinations of these sizes: 3/8 inch, 1/2 inch, and 3/4 inch; all with a .625 through hole. Materials available are Gray PVC and Polypropylene. The PVC and Polypropylene materials are used for chemical resistance applications and are NSF Standard 61 Certified. PVC with EPDM seals are standard. Other seal options are Buna-N and Viton®. Panel Mounts are not available.
LGH Series
Description
| SKU | Description |
|---|---|
| LGH-34F12M | 3/4 FNPT by 1/2 MNPT Ball Valve |
| LGH-34F34MGH | 3/4 FNPT by 3/4 MGH Ball Valve |
| LGH-34F6B | 3/4 FNPT by 3/8 Barb Ball Valve |
| LGH-34F-B | 3/4 FNPT by 3/4 FNPT PVC/Buna Ball Valve |
| LGH-34FF | 3/4 FNPT by 3/4 FNPT Ball Valve |
| LGH-34FGH34F | 3/4 FGH by 3/4 FNPT Ball Valve |
| LGH-34FGH34M | 3/4 FGH by 3/4 MNPT Ball Valve |
| LGH-34FGH6B | 3/4 FGH by 3/8 Barb Ball Valve |
| LGH-34FGH8M | 3/4 FGH by 1/2 MNPT Ball Valve |
| LGH-34FGHMGH | 3/4 FGH by 3/4 MGH Ball Valve |
| LGH-34FM | 3/4 FNPT by 3/4 MNPT Ball Valve |
| LGH-34FM-E | 3/4 FNPT to 3/4 MNPT PVC/EPDM Ball Valve |
| LGH-34FM-PP-E | 3/4 FNPT to 3/4 MNPT Bk Polypropylene/EPDM Ball Valve |
