Description

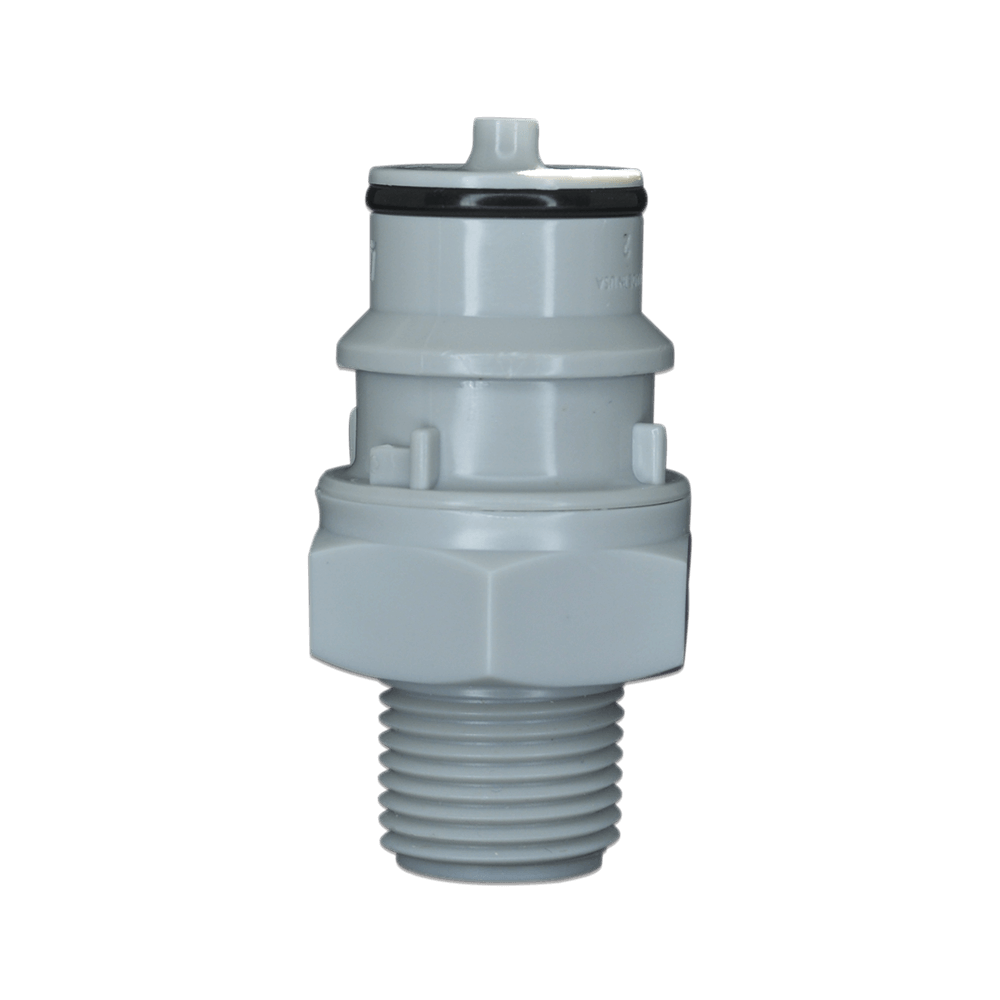

Our polypropylene fittings are made from a medical grade, gamma serializable polypropylene offering a greater chemical resistance. These couplings are available in both grey polypropylene and almond-colored polypropylene.
| NON-VALVED | VALVED | THREAD SIZE | L(nv/v) | WIDTH | HEIGHT |
|---|---|---|---|---|---|
| 20PPX-PE1-02 | 20PPV-PE1-02 | 1/8" NPT | 1.27"/1.39" | .50" | .50" |
| 20PPX-PE1-02MALD | 20PPV-PE1-02MALD | 1/8" NPT | 1.27"/1.39" | .50" | .50" |
| 40PPX-PE1-04 | 40PPV-PE1-04 | 1/4" NPT | 1.50"/1.65" | .63" | .63" |
| 40PPX-PE1-04MALD | 40PPV-PE1-04MALD | 1/4" NPT | 1.50"/1.65" | .63" | .63" |
| 50PPX-PE1-04 | 50PPV-PE1-04 | 1/4" NPT | 1.60"/1.75" | .63" | .63" |
| 50PPX-PE1-06 | 50PPV-PE1-06 | 3/8" NPT | 1.60"/1.75" | .75" | .75" |
