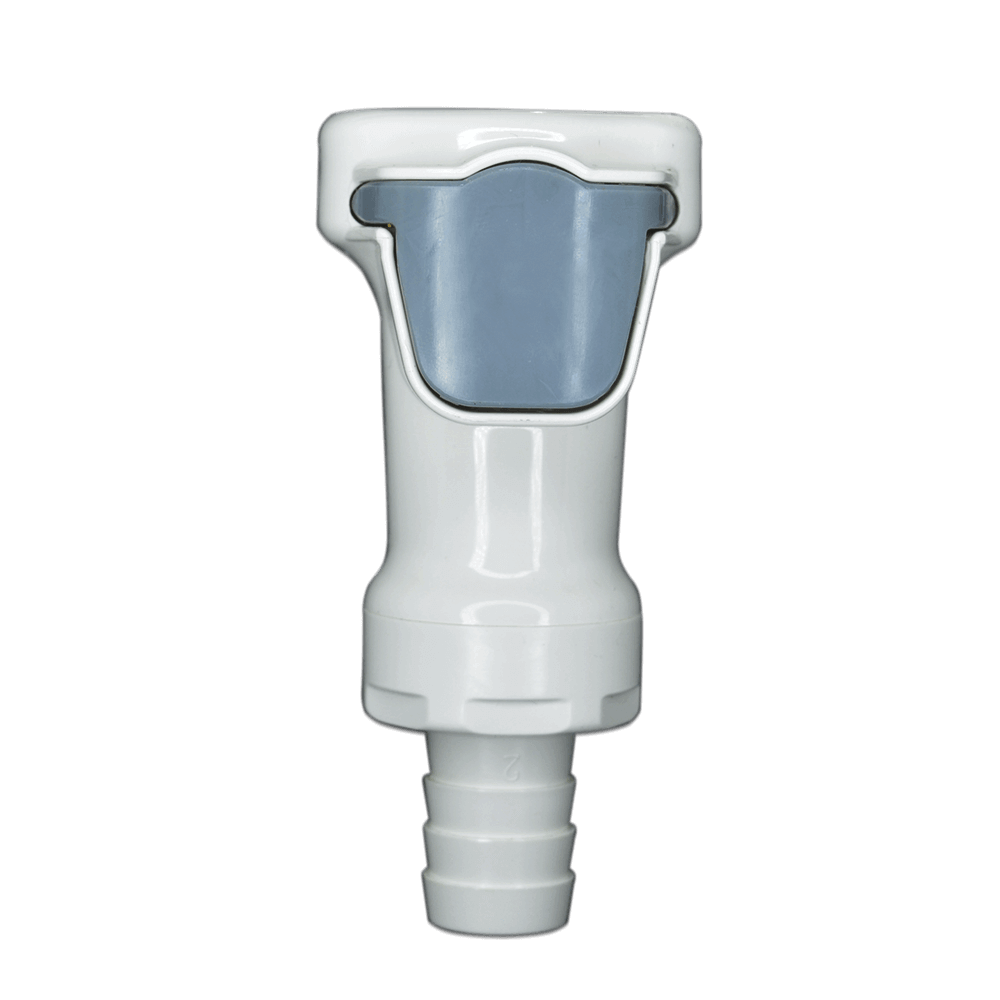

50AC S2 Series – Inline Hose Barb Socket, Plastic Release Latch
Description
50AC All plastic Quick Coupler Body, Acetal Fitting, Three Barb sizes available, 1/4, 5/16, and 3/8. For use with the all plastic series male inserts only.
Long Body series offered in Valved and non-valves sockets.
1/4″ diameter flow path
- Acetal (POM) durable body, and latch.
- Operating Pressure Vacuum to 120 PSI
| NON-VALVED | VALVED | TUBE SIZE | METRIC TUBE | LENGTH | WIDTH | HEIGHT |
|---|---|---|---|---|---|---|
| 50AC-S2-04LB | 50ACV-SB2-04 | 1/4" ID | 6.4 MM | 2.02" | .75" | .94" |
| 50AC-S2-05LB | 50ACV-SB2-05 | 5/16" | 7.9 MM | 2.02" | .75" | .94" |
| 50AC-S2-06LB | 50ACV-SB2-06 | 3/8" ID | 9.5 MM | 2.02" | .75" | .94" |
