20AC S2 Series –

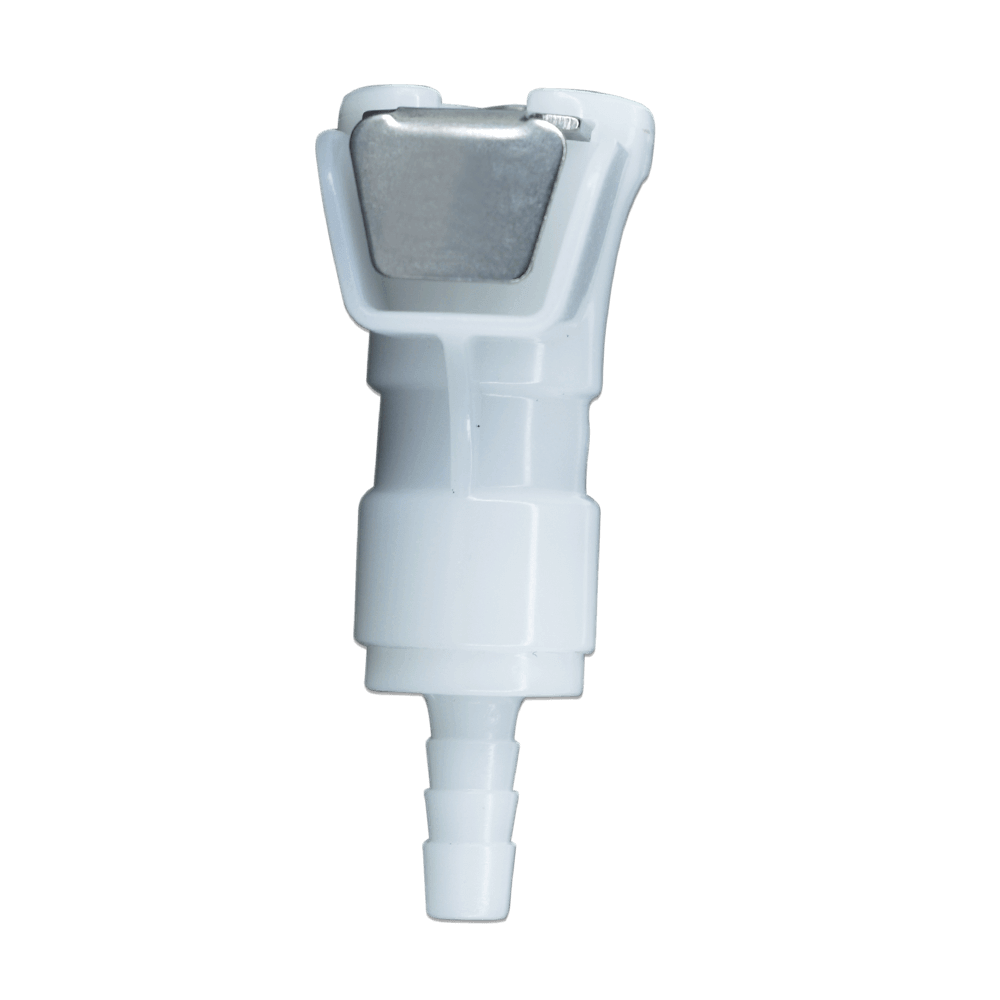

20AC S2 Series – Inline Hose Barb Socket
Description
1/8 flow, Hose Barb Socket, Acetal with Stainless Steel Release Latch and spring
| NON-VALVED | VALVED | TUBE SIZE | METRIC TUBE | LENGTH | WIDTH | HEIGHT |
|---|---|---|---|---|---|---|
| 20AC-S2-01 | 20ACV-SB2-01 | 1/16" | 1.6 MM ID | 1.42" | .62" | .80" |
| 20AC-S2-02 | 20ACV-SB2-02 | 1/8" | 3.2 MM ID | 1.65" | .62" | .80" |
| 20AC-S2-03 | 20ACV-SB2-03 | 3/16" | 4.8 MM ID | 1.80" | .62" | .80" |
| 20AC-S2-04 | 20ACV-SB2-04 | 1/4" | 6.4 MM ID | 1.80" | .62" | .80" |
