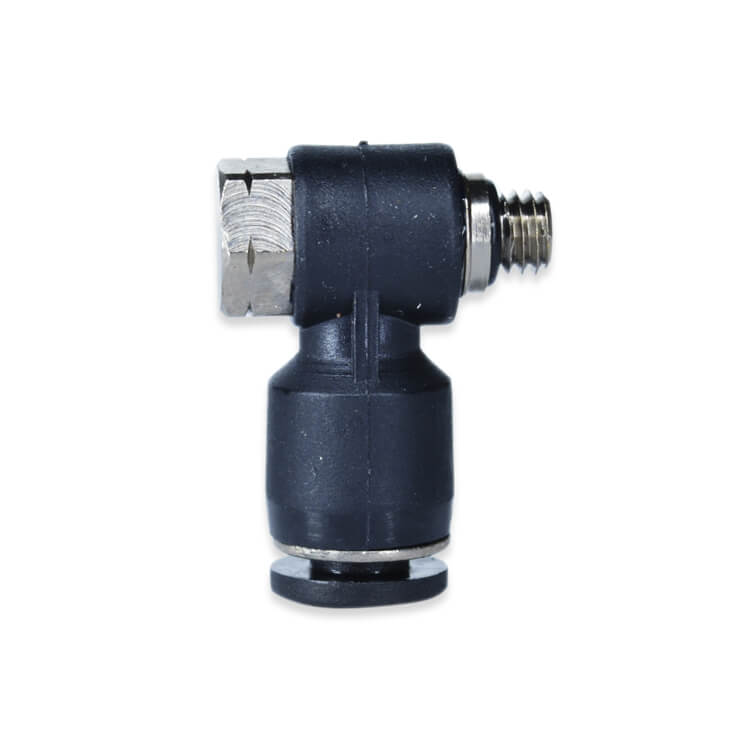

Push-to-connect adjustable male swivel 90° Elbow with NPT and UNF threads. The working pressure is 150 psi, the temperature range is 32˚ F to 140˚ F. This series is made of PBT resin, Nickel Plated Brass with a Buna-N O-ring and a Stainless Steel grip ring. For use with compressed air and inert gases. This fitting is also available with metric sizes. These fittings can swivel a full 360°.
PEA SERIES
Description
| SKU | DESCRIPTION |
|---|---|
| PEA-10U14P | 10-32 Male UNF by 1/4 OD PBT Adjustable Elbow |
| PEA-10U18P | 10-32 Male UNF by 1/8 OD PBT Adjustable Elbow |
| PEA-10U316P | 10-32 Male UNF by 3/16 OD PBT Adjustable Elbow |
| PEA-10U532P | 10-32 Male UNF by 5/32 OD PBT Adjustable Elbow |
| PEA-2M14P | 1/8 MNPT by 1/4 OD PBT Adjustable Elbow |
| PEA-2M18P | 1/8 MNPT by 1/8 OD PBT Adjustable Elbow |
| PEA-2M316P | 1/8 MNPT by 3/16 OD PBT Adjustable Elbow |
| PEA-2M516P | 1/8 MNPT by 5/16 OD PBT Adjustable Elbow |
| PEA-2M532P | 1/8 MNPT by 5/32 OD PBT Adjustable Elbow |
| PEA-4M14P | 1/4 MNPT by 1/4 OD PBT Adjustable Elbow |
| PEA-4M316P | 1/4 MNPT by 3/16 OD PBT Adjustable Elbow |
| PEA-4M516P | 1/4 MNPT by 5/16 OD PBT Adjustable Elbow |
| PEA-6M12P | 3/8 MNPT by 1/2 OD PBT Adjustable Elbow |
| PEA-6M14P | 3/8 MNPT by 1/4 OD PBT Adjustable Elbow |
| PEA-6M316P | 3/8 MNPT by 3/16 OD PBT Adjustable Elbow |
| PEA-6M38P | 3/8 MNPT by 3/8 OD PBT Adjustable Elbow |
| PEA-6M516P | 3/8 MNPT by 5/16 OD PBT Adjustable Elbow |
| PEA-8M12P | 1/2 MNPT by 1/2 OD PBT Adjustable Elbow |
| PEA-8M38P | 1/2 MNPT by 3/8 OD PBT Adjustable Elbow |
