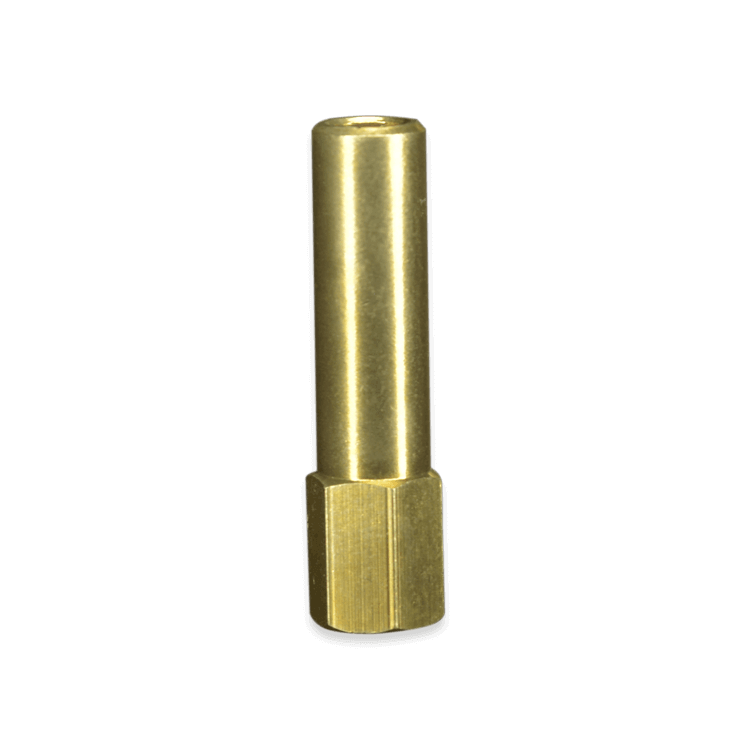

These Connectors are Brass with male or female threads on one end with a nut for tightening. The other end is smooth for ease in attaching tubing. They will connect to any 10-32 threaded inlet. The OD tube sizes are 5/32”, 1/4″ and 3/8”.
AC – Brass Threaded Stem Connectors
Categories: Brass Push-To-Connects, Push-to-Connects
Tags: Brass, Metal
Description
SKU | |
---|---|
AC-10F-14S | 10-32 Female UNF by 1/4 Stem Brass |
AC-10F-38S | 10-32 Female UNF by 3/8 Stem Brass |
AC-10F-532S | 10-32 Female UNF by 5/32 Stem Brass |
AC-10U-14S | 10-32 Male UNF by 1/4 Stem Brass |
AC-10U-38S | 10-32 Male UNF by 3/8 Stem Brass |
AC-10U-532 | 10-32 Male UNF by 5/32 Stem Brass |
