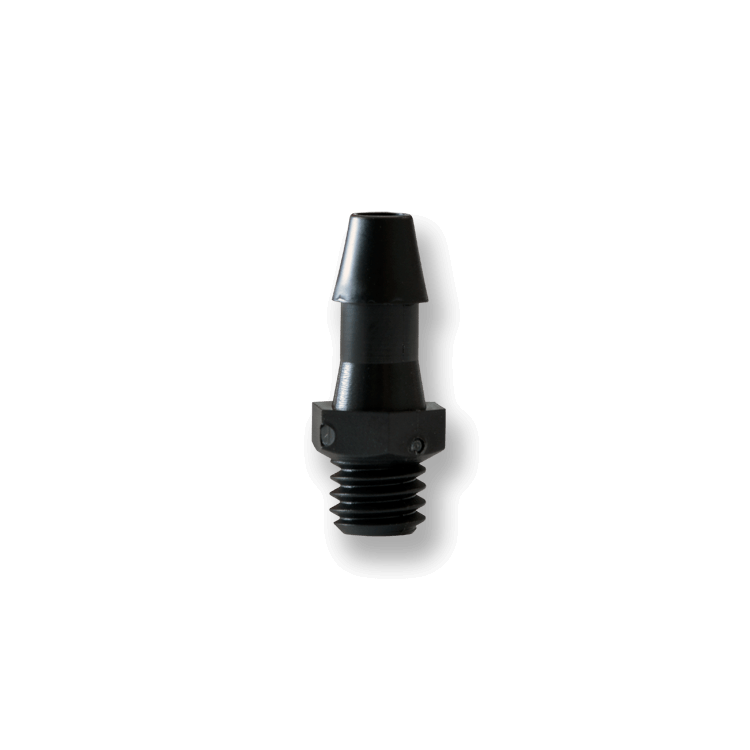

The A-R (formerly APX) Series are standard single barbed adapters. These adapters have 10-32 inch and 1/4-28 inch male UNF threads, and 1/16 inch NPT male threads. The materials available are: Natural and Black Nylon, Polypropylene, PVDF and High-Density Polyethylene.
A-R Series – Standard 10-32 Single Barb Adapter
Description
| SKU | Description |
|---|---|
| A-R-10332B-NN | 10-32 inch Male UNF by 3/32 inch Natural Nylon Single Barbed Adapter |
| A-R-10332B-BN | 10-32 inch Male UNF by 3/32 inch Black Nylon Single Barbed Adapter |
| A-R-10332B-NPP | 10-32 inch Male UNF by 3/32 inch Polypropylene Single Barbed Adapter |
| A-R-10332B-HDPE | 10-32 inch Male UNF by 3/32 inch High-Density Polyethylene Single Barbed Adapter |
| A-R-10332B-PVDF | 10-32 inch Male UNF by 3/32 inch PVDF Single Barbed Adapter |
| A-R-101B-NN | 10-32 inch Male UNF by 1/16 inch Natural Nylon Single Barbed Adapter |
| A-R-101B-BN | 10-32 inch Male UNF by 1/16 inch Black Nylon Single Barbed Adapter |
| A-R-101B-NPP | 10-32 inch Male UNF by 1/16 inch Polypropylene Single Barbed Adapter |
| A-R-101B- HDPE | 10-32 inch Male UNF by 1/16 inch High-Density Polyethylene Single Barbed Adapter |
| A-R-101B-PVDF | 10-32 inch Male UNF by 1/16 inch PVDF Single Barbed Adapter |
| A-R-102B-NN | 10-32 inch Male UNF by 1/8 inch Natural Nylon Single Barbed Adapter |
| A-R-102B-BN | 10-32 inch Male UNF by 1/8 inch Black Nylon Single Barbed Adapter |
| A-R-102B-NPP | 10-32 inch Male UNF by 1/8 inch Polypropylene Single Barbed Adapter |
| A-R-102B- HDPE | 10-32 inch Male UNF by 1/8 inch High-Density Polyethylene Single Barbed Adapter |
| A-R-102B-PVDF | 10-32 inch Male UNF by 1/8 inch PVDF Single Barbed Adapter |
| A-R-10532B-NN | 10-32 inch Male UNF by 5/32 inch Natural Nylon Single Barbed Adapter |
| A-R-10532B-BN | 10-32 inch Male UNF by 5/32 inch Black Nylon Single Barbed Adapter |
| A-R-10532B-NPP | 10-32 inch Male UNF by 5/32 inch Polypropylene Single Barbed Adapter |
| A-R-10532B-HDPE | 10-32 inch Male UNF by 5/32 inch High-Density Polyethylene Single Barbed Adapter |
| A-R-10532B-PVDF | 10-32 inch Male UNF by 5/32 inch PVDF Single Barbed Adapter |
| A-R-10T332B-NN | 10-32 inch Male UNF by 3/32 inch Natural Nylon Single Barbed Adapter |
| A-R-10T332B-BN | 10-32 inch Male UNF by 3/32 inch Black Nylon Single Barbed Adapter |
| A-R-10T332B-NPP | 10-32 inch Male UNF by 3/32 inch Polypropylene Single Barbed Adapter |
| A-R-10T332B-HDPE | 10-32 inch Male UNF by 3/32 inch High-Density Polyethylene Single Barbed Adapter |
| A-R-10T332B-PVDF | 10-32 inch Male UNF by 3/32 inch PVDF Single Barbed Adapter |
| A-R-10T1B-NN | 10-32 inch Male UNF by 1/16 inch Natural Nylon Single Barbed Adapter |
| A-R-10T1B-BN | 10-32 inch Male UNF by 1/16 inch Black Nylon Single Barbed Adapter |
| A-R-10T1B-NPP | 10-32 inch Male UNF by 1/16 inch Polypropylene Single Barbed Adapter |
| A-R-10T1B-HDPE | 10-32 inch Male UNF by 1/16 inch High-Density Polyethylene Single Barbed Adapter |
| A-R-10T1B-PVDF | 10-32 inch Male UNF by 1/16 inch PVDF Single Barbed Adapter |
| A-R-10T2B-NN | 10-32 inch Male UNF by 1/8 inch Natural Nylon Single Barbed Adapter |
| A-R-10T2B-BN | 10-32 inch Male UNF by 1/8 inch Black Nylon Single Barbed Adapter |
| A-R-10T2B-NPP | 10-32 inch Male UNF by 1/8 inch Polypropylene Single Barbed Adapter |
| A-R-10T2B-HDPE | 10-32 inch Male UNF by 1/8 inch High-Denstiry Polyethylene Single Barbed Adapter |
| A-R-10T2B-PVDF | 10-32 inch Male UNF by 1/8 inch PVDF Single Barbed Adapter |
| A-R-10X2B-NN | 10-32 inch Male UNF by 1/8 inch Natural Nylon Single Barbed Adapter |
| A-R-10X2B-BN | 10-32 inch Male UNF by 1/8 inch Black Nylon Single Barbed Adapter |
| A-R-10X2B-NPP | 10-32 inch Male UNF by 1/8 inch Polypropylene Single Barbed Adapter |
| A-R-10X2B-HDPE | 10-32 inch Male UNF by 1/8 inch High-Density Polyethylene Single Barbed Adapter |
| A-R-10X2B-PVDF | 10-32 inch Male UNF by 1/8 inch PVDF Single Barbed Adapter |
| A-R-141B-NN | 1/4-28 inch Male UNF by 1/16 inch Natural Nylon Single Barbed Adapter |
| A-R-141B-BN | 1/4-28 inch Male UNF by 1/16 inch Black Nylon Single Barbed Adapter |
| A-R-141B-NPP | 1/4-28 inch Male UNF by 1/16 inch Polypropylene Single Barbed Adapter |
| A-R-141B-HDPE | 1/4-28 inch Male UNF by 1/16 inch High-Density Polyethylene Single Barbed Adapter |
| A-R-141B-PVDF | 1/4-28 inch Male UNF by 1/16 inch PVDF Single Barbed Adapter |
| A-R-1M1B-NN | 1/16 inch MNPT by 1/16 inch Natural Nylon Single Barbed Adapter |
| A-R-1M1B-BN | 1/16 inch MNPT by 1/16 inch Black Nylon Single Barbed Adapter |
| A-R-1M1B-NPP | 1/16 inch MNPT by 1/16 inch Polypropylene Single Barbed Adapter |
| A-R-1M1B-HDPE | 1/16 inch MNPT by 1/16 inch High-Density Polyethylene Single Barbed Adapter |
| A-R-1M1B-PVDF | 1/16 inch MNPT by 1/16 inch PVDF Single Barbed Adapter |
| A-R-1M2B-NN | 1/16 inch MNPT by 1/8 inch Natural Nylon Single Barbed Adapter |
| A-R-1M2B-BN | 1/16 inch MNPT by 1/8 inch Black Nylon Single Barbed Adapter |
| A-R-1M2B-NPP | 1/16 inch MNPT by 1/8 inch Polypropylene Single Barbed Adapter |
| A-R-1M2B-HDPE | 1/16 inch MNPT by 1/8 inch High-Density Polyethylene Single Barbed Adapter |
| A-R-1M2B-PVDF | 1/16 inch MNPT by 1/8 inch PVDF Single Barbed Adapter |
| A-R-1M332B-NN | 1/16 inch MNPT by 3/32 inch Natural Nylon Single Barbed Adapter |
| A-R-1M332B-BN | 1/16 inch MNPT by 3/32 inch Black Nylon Single Barbed Adapter |
| A-R-1M332B-NPP | 1/16 inch MNPT by 3/32 inch Polypropylene Single Barbed Adapter |
| A-R-1M332B-HDPE | 1/16 inch MNPT by 3/32 inch High-Density Polyethylene Single Barbed Adapter |
| A-R-1M332B-PVDF | 1/16 inch MNPT by 3/32 inch PVDF Single Barbed Adapter |
| A-R-1M3B-NN | 1/16 inch MNPT by 3/16 inch Natural Nylon Single Barbed Adapter |
| A-R-1M3B-BN | 1/16 inch MNPT by 3/16 inch Black Nylon Single Barbed Adapter |
| A-R-1M3B-NPP | 1/16 inch MNPT by 3/16 inch Polypropylene Single Barbed Adapter |
| A-R-1M3B-HDPE | 1/16 inch MNPT by 3/16 inch High-Density Polyethylene Single Barbed Adapter |
| A-R-1M3B-PVDF | 1/16 inch MNPT by 3/16 inch PVDF Single Barbed Adapter |
| A-R-1M532B-NN | 1/16 inch MNPT by 5/32 inch Natural Nylon Single Barbed Adapter |
| A-R-1M532B-BN | 1/16 inch MNPT by 5/32 inch Black Nylon Single Barbed Adapter |
| A-R-1M532B-NPP | 1/16 inch MNPT by 5/32 inch Polypropylene Single Barbed Adapter |
| A-R-1M532B-HDPE | 1/16 inch MNPT by 5/32 inch High-Density Polyethylene Single Barbed Adapter |
| A-R-1M532B-PVDF | 1/16 inch MNPT by 5/32 inch PVDF Single Barbed Adapter |
