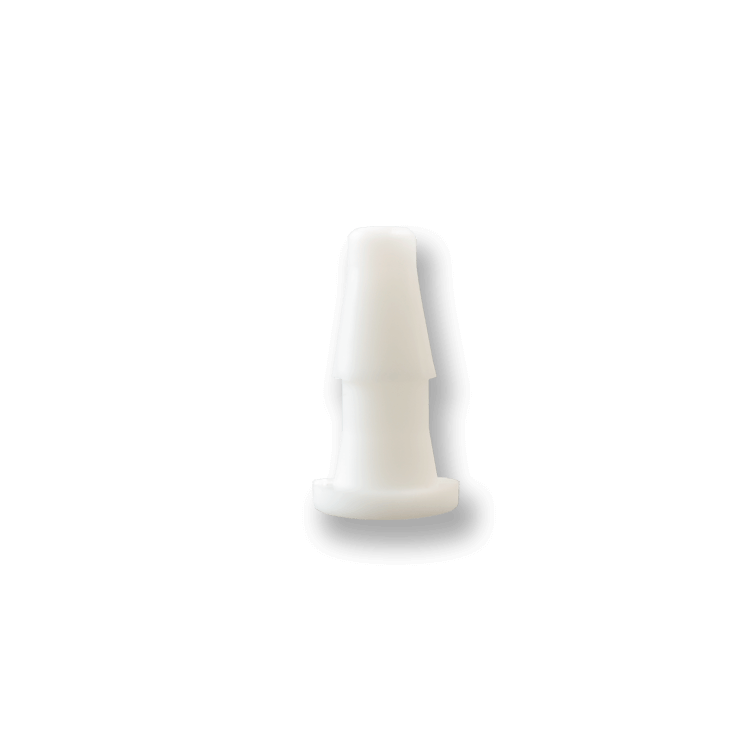

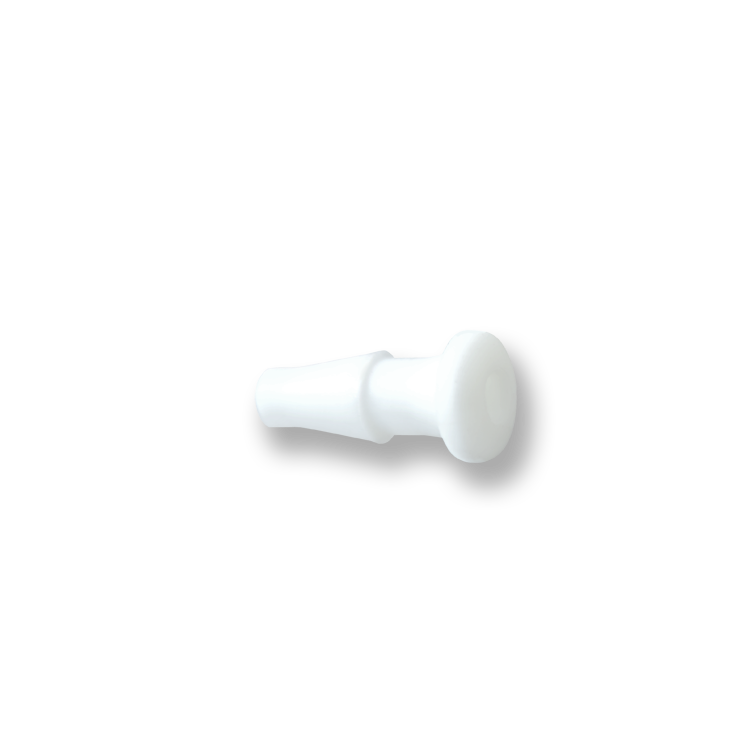

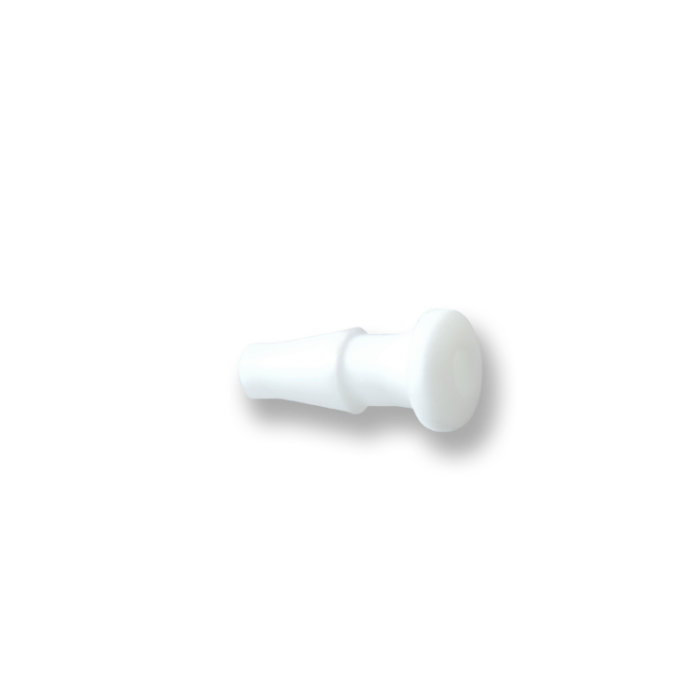

The TP-O Series is a standard single barbed Tube Plug with no parting line on the barb. Tubing can be started on the barb before any expansion begins and it will expand the tubing up to 43% when completely inserted. It is available in Black and White Nylon, Polypropylene or PVDF. This series is also available with an orifice. Barb sizes for this tube plug are: 1/16 inch, 1/8 inch, 3/32 inch, 3/16 inch, 1/4 inch, 5/32 inch, 3/8 inch, 1/2 inch, 5/8 inch, and 1 inch. Materials vary with barb sizes (see list below).
TP-O TUBE PLUG
Categories: Plastic Caps & Plugs, Plastic Fittings
Tags: Black Nylon, Orifice, Plastic, Polypropylene, PVDF, Single Barbed Tube Plug, Tube Plug, White Nylon
Description
SKU | Description |
---|---|
TP-O-1B | 1/16 Barb Tube Plug |
TP-O-2B | 1/8 Barb Tube Plug |
TP-O-332B | 3/32 Barb Tube Plug |
TP-O-3B | 3/16 Barb Tube Plug |
TP-O-4B | 1/4 Barb Tube Plug |
TP-O-532B | 5/32 Barb Tube Plug |
TP-O-6B | 3/8 Barb Tube Plug |
TP-O-8B | 1/2 Barb Tube Plug |
TP-O-10B | 5/8 Barb Tube Plug |
TP-S-1B | 1/16 Standard Single Barb Tube Plug |
TP-S-2B | 1/8 Standard Single Barb Tube Plug |
TP-S-332B | 3/32 Standard Single Barb Tube Plug |
TP-S-532B | 5/32 Standard Single Barb Tube Plug |
