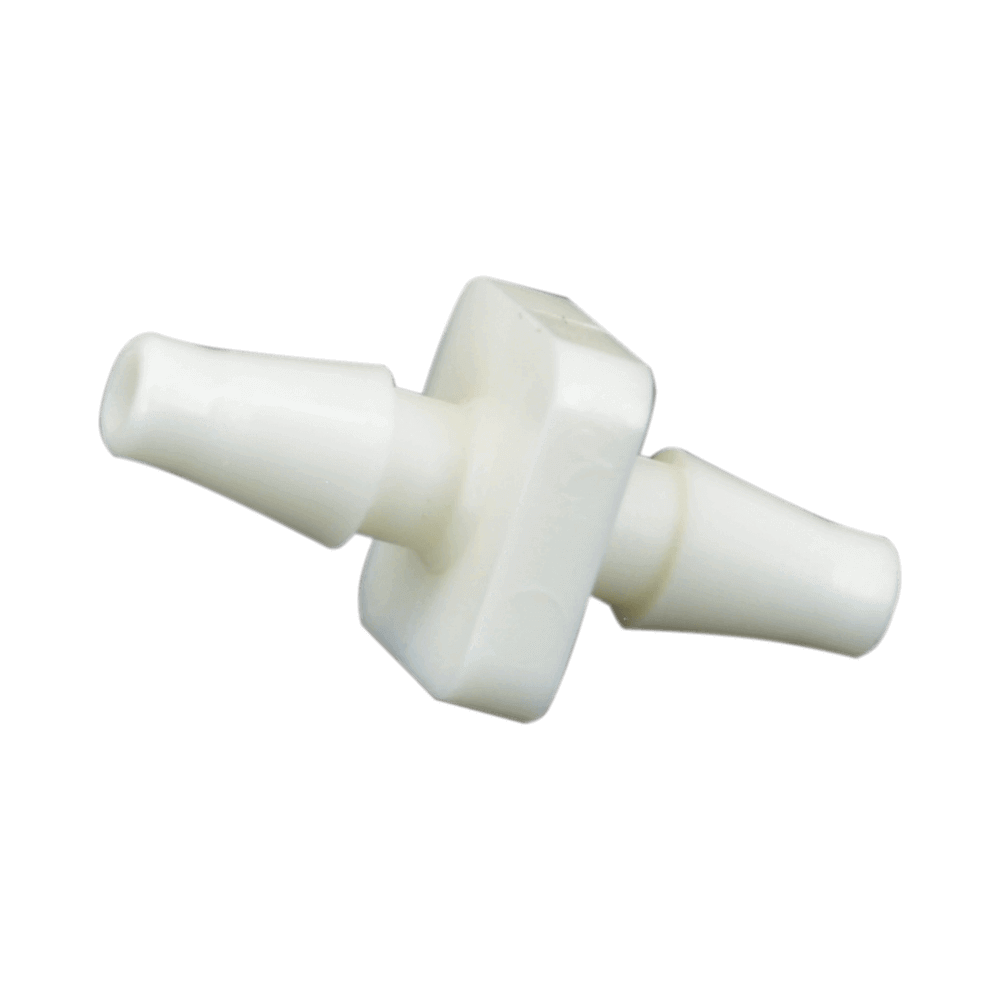

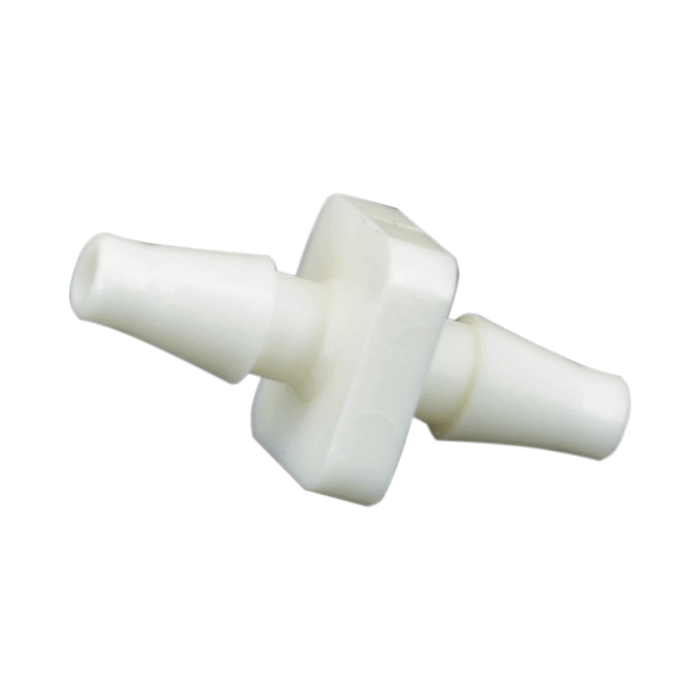

The C-SO Series are original single barbed straight and reducing connectors. These connectors have no parting line on the barb, and have a square center hub. Tubing can be started on the barb of this connector before any expansion begins. It will expand tubing 43% when it is completely inserted. Available materials are Black and White Nylon, Natural Polypropylene, Clear Polycarbonate, and Natural PVDF. Available barb sizes are: 1/16 inch, 3/32 inch, and 1/8 inch.
C-SO SINGLE AND REDUCING BARB CONNECTOR
Description
| SKU | Description |
|---|---|
| C-SO-2B1B | 1/8 to 1/16 Square Hub Reducer |
| C-SO-2B332B | 1/8 by 3/32 Square Hub Reducer |
| C-SO-332B1B | 3/32 to 1/16 Square Hub Reducer |
| C-SO-1B | 1/16 Square Hub Connector |
| C-SO-2B | 1/8 Square Hub Connector |
| C-SO-332B | 3/32 Square Hub Connector |
