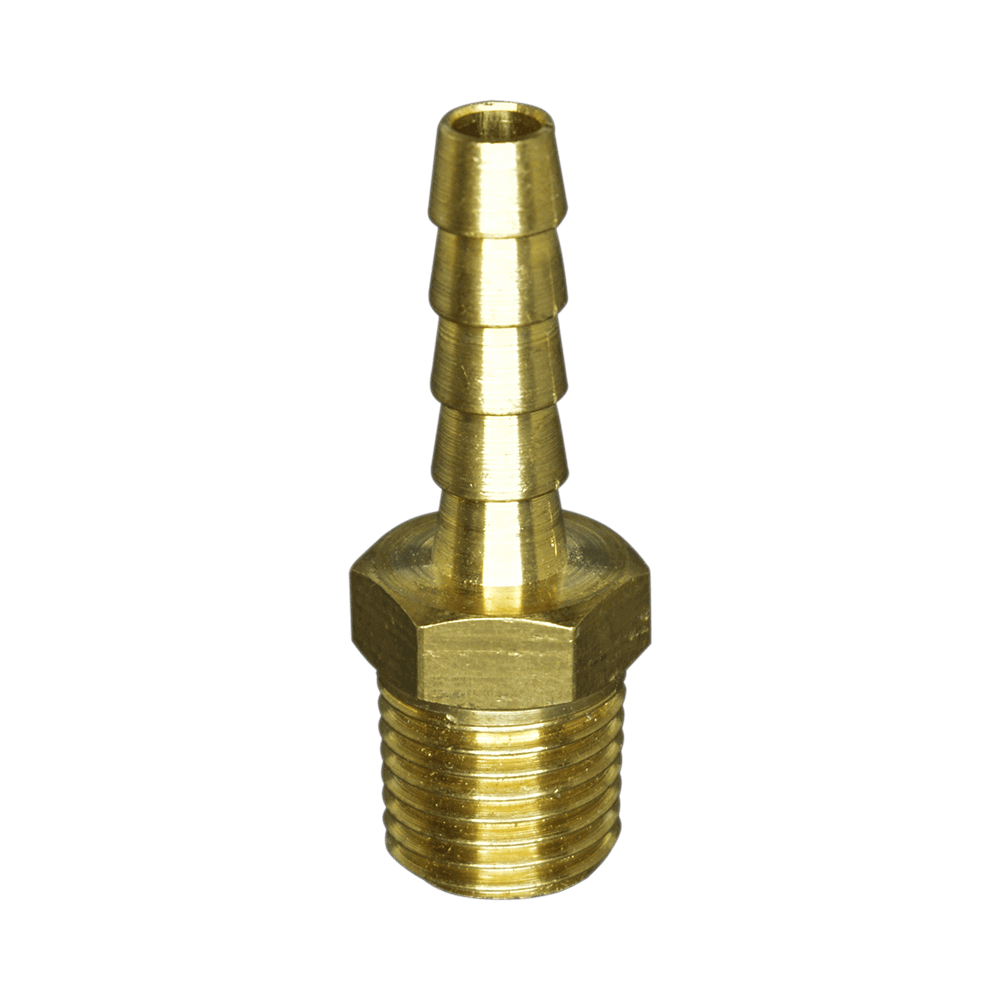

The BHMA Series is a rigid multi-barbed Brass Barstock Adapter. It adapts from male NPT threads to barbs. Available MNPT sizes range from 1/16 inch to 1 inch. Available barb sizes range from 1/8 inch to 3/4 inch. Flow can be equal or reducing. The temperature range is -40° F to 160° F and the working pressure is 150 psi.
BHMA RIGID BRASS BARSTOCK ADAPTER
Description
| SKU | Description |
|---|---|
| BHMA-1M2B | 1/16 inch MNPT by 1/8 inch Brass Multi-Barbed Brass Straight Adapter |
| BHMA-1M4B | 1/16 inch MNPT by 1/4 inch Brass Multi-Barbed Brass Straight Adapter |
| BHMA-2M2B | 1/8 inch MNPT by 1/8 inch Brass Multi-Barbed Brass Straight Adapter |
| BHMA-2M2B-SH | 1/8 inch MNPT by 1/8 inch Brass Multi-Barbed Brass Straight Adapter Short .475 |
| BHMA-2M3B | 1/8 inch MNPT by 3/16 inch Brass Multi-Barbed Brass Straight Adapter |
| BHMA-2M4B | 1/8 inch MNPT by 1/4 inch Brass Multi-Barbed Brass Straight Adapter |
| BHMA-2M5B | 1/8 inch MNPT by 5/16 inch Brass Multi-Barbed Brass Straight Adapter |
| BHMA-2M6B | 1/8 inch MNPT by 3/8 inch Brass Multi-Barbed Brass Straight Adapter |
| BHMA-2M8B | 1/8 inch MNPT by 1/2 inch Brass Multi-Barbed Brass Straight Adapter |
| BHMA-4M2B | 1/4 inch MNPT by 1/8 inch Brass Multi-Barbed Brass Straight Adapter |
| BHMA-4M4B | 1/4 inch MNPT by 1/4 inch Brass Multi-Barbed Brass Straight Adapter |
| BHMA-4M6B | 1/4 inch MNPT by 3/8 inch Brass Multi-Barbed Brass Straight Adapter |
| BHMA-4M8B | 1/4 inch MNPT by 1/2 inch Brass Multi-Barbed Brass Straight Adapter |
| BHMA-6M4B | 3/8 inch MNPT by 1/4 inch Brass Multi-Barbed Brass Straight Adapter |
| BHMA-6M6B | 3/8 inch MNPT by 3/8 inch Brass Multi-Barbed Brass Straight Adapter |
| BHMA-6M8B | 3/8 inch MNPT by 1/2 inch Brass Multi-Barbed Brass Straight Adapter |
| BHMA-8M8B | 1/2 inch MNPT by 1/2 inch Brass Multi-Barbed Brass Straight Adapter |
| BHMA-12M12B | 3/4 inch MNPT by 3/4 inch Brass Multi-Barbed Brass Straight Adapter |
| BHMA-12M8B | 3/4 inch MNPT by 1/2 inch Brass Multi-Barbed Brass Straight Adapter |
