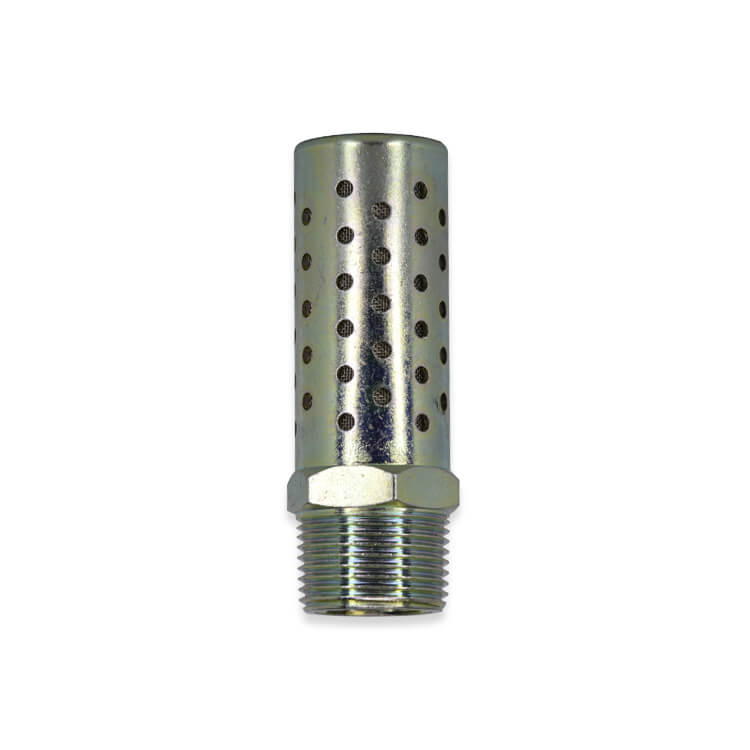

High-flow Muffler made of Zinc-plated Steel, has a 50 mesh, self-cleaning Stainless Steel screen. It is made for heavy duty use. Because of the design of small holes all around the body of the shell, it exhausts air quietly without restricting the air flow. The maximum pressure is 300 psi and the temperature range is 35° F to 160° F. The male NPT threads available are 1/8”, 1/4″, 3/8”, 1/2″, 3/4″, 1”, 1-1/4”, 1-1/2” and 2”.
ZSAM Series
Description
| SKU | Definition |
|---|---|
| ZSAM-2M | 1/8 MNPT High Flow Steel Muffler |
| ZSAM-4M | 1/4 MNPT High Flow Steel Muffler |
| ZSAM-6M | 3/8 MNPT High Flow Steel Muffler |
| ZSAM-8M | 1/2 MNPT High Flow Steel Muffler |
| ZSAM-12M | 3/4 MNPT High Flow Steel Muffler |
| ZSAM-16M | 1 inch MNPT High Flow Steel Muffler |
| ZSAM-20M | 1-1/4 inch MNPT High Flow Steel Muffler |
| ZSAM-24M | 1-1/2 inch MNPT High Flow Steel Muffler |
| ZSAM-32M | 2 inch MNPT High Flow Steel Muffler |
