Description

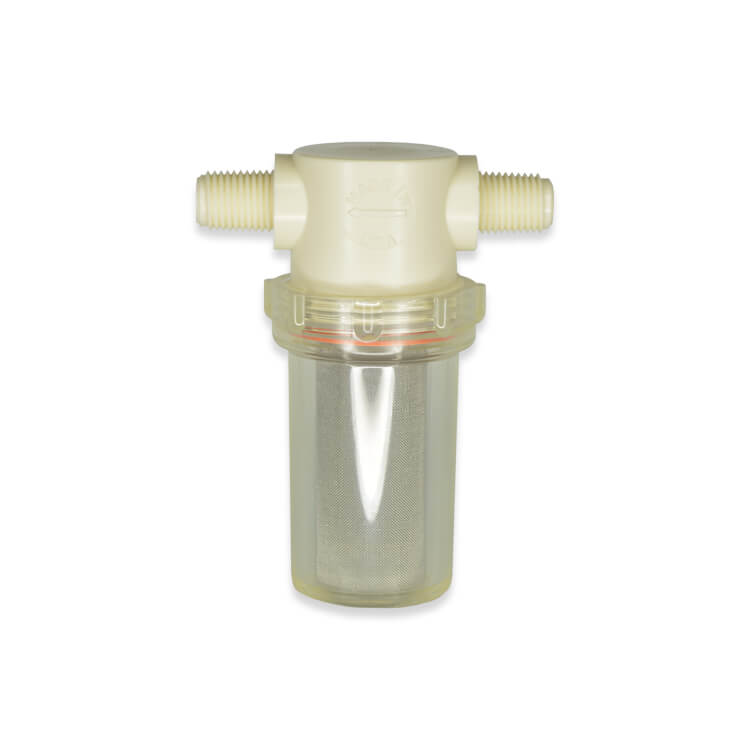

The MF Series Plastic Bowl Filters are 3.75 inches tall. These are the same configuration as our LP series with a longer bowl allowing 7.70 square inches of filtration. The standard configuration is a Nylon top with a clear Nylon bowl. Available gaskets are EPDM, Buna, and FKM gaskets with your selection of 20, 40, 80, or 250 mesh 303 Stainless Steel screens. Male and female NPT thread sizes are 1/8, 1/4, 3/8, and 1/2 inch. Barb sizes are 1/4, 3/8, and 1/2 inch. Black Polypropylene is optional. These bowl filters are used in agriculture, dental, and semi-conductor and vacuum applications for water and chemicals. Not for use with potable water.
| SKU | Description |
|---|---|
| MF-NCB | Mini series Nylon clear bowl |
| MF-NN | Mini series white nylon bowl |
| MF-PB | Black poly Bowl |
| MF-80 | 80 mesh replacement screen |
| MF-4B-PT | 1/4 Barbed Black Polypropylene top |
| MF-80 Caged | 80 mesh with nylon supports |
| MF-40 Caged | 40 Mesh with Nylon supports |
| MF-2M-NN-B-250 | 1/8 inch MNPT, White Nylon top and bowl, 250 Mesh, Buna |
| MF-4M-NNC-E-80 | 1/4 inch Male NPT Nylon with Clear Bowl 80 Mesh EPDM |
| MF-4F-PNC-E80 | 3/8 inch MNPT Black Polypropylene top Clear Nylon bowl,EPDM 80 Mesh |
| MF-6F-PNC-E-40 | 3/8 inch FNPT Black Polypropylene top, Clear Nylon Bowl 40 Mesh EPDM |
| MF-8F-NN-E-250 | 1/2 FNPT White nylon top and bowl,Epdm with 250 mesh |
| MF-6M-PNC-E-40 | 3/8 inch MNPT Polypropylene Top,,Clear Nylon bowl 40 Mesh EPDM |
| MF-4B-PNC-B-40 | Mini 80 Mesh screen |
| MF-6B-NNC-B-40 | 3/8 Barbed Nylon top,Clear nylon bowl, Buna 40 Mesh |
| MF-8B-PNC-B-80 Caged | 1/2 Barbed, Black poly top, Clear nylon Bowl,80 Mesh caged screen, Buna |
